Payment & Shipping Terms:
|Condition:||New||Type:||Tile Forming Machine|
|Tile Type:||Colored Steel / PPGI / Galvanized Steel Coil||Voltage:||380V 60HZ Or At Your Requirement|
|Power:||15.5+7.5Kw||After-sale:||Engineers Available To Service|
sheet metal rolling machine,
guardrail forming machine

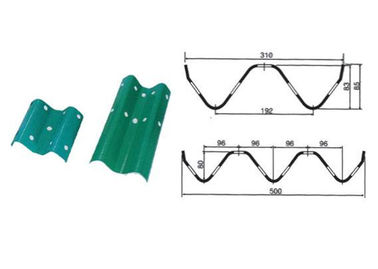

Highway Crash Barrier Forming Machine / Highway Guardrail Roll Forming Machine / Highway Guardrail Making Machine
|1||Inner diameter of manual decoiler||500mm|
|2||Outer diameter of manual decoiler||1000mm|
|3||Weight capacity of manual decoiler||5T|
|5||Raw Material||colored steel or galvanized steel|
|6||Roller material||high grade 45# forged steel,polished,heated,quenched|
|7||Blade Material||CR12 with polished|
|8||Chrome Coating||coated with 0.05mm hard chrome|
|9||Control System||PLC control|
|10||Main motor power||15KW|
|12||Roller station||16 rollers|
|13||Material of chain||high grade 45# steel:polished,heated,quenched HRC 45-50|
|14||Speed of Product||7-8m/min|
|16||Type of cutting||hydraulic cutting|
|17||Coil Width||according to your requirment|
|18||Cover Width||according to your requirement|
|19||Material of rack||complete welded structure of A3 steel plate|
|20||Machine frame stand||welded with 300H-steel|
|21||Type of forming machine||single station with chain transmission|
|22||Thickness of frame||24mm|
|25||Voltage||380V 50HZ 3Phases( or as your local requirement)|
|26||Electrical control||PLC frequency control system|
PS: the above are for reference; customized design is provided.
Components and Function
This decoiler is passive type, which could load coil by expanding the bolts fix at coil inner diameter. It’s easy to be operated as an economical solution
Adopt guiding bar and sliding block to control the width and position of the steel sheet. The
coil is guided in the correct position and passed to the roll forming system. Can adjust the guiding bar with loosing the fixing bolts to feed sheet in right position. It’s fixed structure
to make sure can not move easily.
This device is to make the steel strip go into the roll forming system flatly and straightly. It
consist of seven small leveling rollers (3 pieces up and 4 pieces down), which can
achieve good leveling quality.
The punching dies adopt Cr12 with quenched treatment. The holes made by these punching
moulds are easy to be installed together. Because the holes are finished with high precision. The device has advanced techniques, quick action, long life and low noise. You could control it easily.
Roll Forming System:
A. Machine frame adopts welding structure with shot blasting and painting treatment
B. All rollers material adopt high quality GCR15 steel with quenching treatment and tempering treatment, and the hardness reaches to HRC58-62. All rollers are treated by full CNC machines to make sure the rollers with good rigidity and precision, and form perfect sheets as per design.
C. All rolling shafts are made by high quality No.45 steel with quenching and tempering treatment, so the shafts with good rigidity which could use for long tern without
D. Rolling shaft supporting structure type is steel wall and welded with the basement together to have rigidity.
E. Cycloidal pin gear speed reducer motor driven, the back/forward roller driven by chain, part of upper/lower rollers driven by gear.
A. Adopts post cutting, the cutting blade material is Cr12 with quenched treatment.
B. Adopts welded frame for good rigidity.
C. The cutting action is driven by the power from hydraulic station which guarantees the
precision of cutting and low noisy, long life.
A. Adopts separated hydraulic station for punching device and cutting device.
B. Supply the initial power to the puncher and cuter through a closed oil tank.
C. All valves, motors, pumps and pipes are from high quality Chinese famous brand
PLC Control System:
A. Adopts PLC control and frequency adjust speed, length measurement encoder calculation technology, realize the automatic production.
B. Pressing button Operation, adopt high quality components, such as Mitsubishi PLC,transducer and touching screen, Omron mini-relays, Schneider AC contactor,switches, and so on.
C. The system uses modular structure with convenient, reasonable wiring arrangement.
Finished Panel Supporter:
It can be used to hold finished panels. We supply 2 pieces with length of 2000mm.
Normally 2 pieces supporters together can hold 7000mm panels.
Components of the machine
Decoiler 1 set
Guiding device 1 set
Leveling device 1 set
Punching device 1 set
Roll forming system 1 set
Guiding device 1 set
Finish panel supporter 2 sets
PLC control system 1 set
Hydraulic station 1 set
1. We provide our customers with 1 year warranty.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free at the whole life of the machine.
4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.
1. Standard packaging: Main machine is naked. Computer control system is packed by carton box. Hydraulic pump in waterproof bubble wrap. spare parts in carton box.
2. pack according to customers' requirements.
1. What's your payment terms?
Payment: 30% deposit by T/T before production and the balance 70% after inspection confirmation before shipment.
2.The delivery time?
We deliver the machine within 30-45 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free during whole life of our equipment.
