380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

China 380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier
380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier 380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine supplier

Large Image :  380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI Coil / Glavanized Sheet Coil Voltage: 380V 60HZ Or At Your Requirement
After-sale: Engineers Available To Service Sheet Thickness: 0.3~0.8mm
High Light:

continuous sandwich panel line

,

pu sandwich panel machine

Automatic Precast EPS / Rock Wool Concrete Sandwich Wall Panel Making Machine / Production Line

Product Application

EPS Sandwich Panel Machine/EPS Sandwich Panel Production Line

This is designed to produce fabricated panels for factories,
warehouses and house. The line applies E. P. S,it is the best
material for wall and roof of electronic, medicine, precise
machinery and general factories and warehouses.

The is to produce panels for constructing factories, warehouses
and houses. After forming 0. 4 ~ 0. 5 mm pre-painted steel
sheets, the line attaches them to EPS (Expanded Polystyrene)
and cuts into required size. Roof and wall panels can be
produced by the same machine.



EPS Sandwich Panel Production Line parameters :



Manual decoiler

1).Material coil inner diameter: 450mm-550mm

2).Outer diameter:1500mm

2).Max coil width:1250mm

3).Carrying capacity: 5T





Forming device

1)Shaft material:high grade No.45 steel after treatment

2)Out diameter is 80 mm

3)Roller material: 45# steel polished and coated with chrome HRC55-60°

4)Forming speed:8-15m/min

5)Main motor power:3 kw

6)Roller station:16stations

7)Coil width: 1000/1200/1250mm

8)Effective width:950/1150mm

9).Voltage:380v,50Hz,3 phase



Hydraulic cutter

1). material of blade: Cr12 mould steel with quenched treatment 55-60°C

2). cutting system: adopt advanced hydraulic drive, after forming automatic cut, no distort,

no wasting , high safe factor.(main motor stop cutting)



Control system

1.)Type: PLC Frequency Control System with touch screen
2).PLC Brand: Delta

3).Encoder Brand: Omron

4).Screen: Delta test screen

5).Automatic length and quantity measurement

6).Control station is used to control product length and quantity, automatically cutting to length

and stop when required quantity is achieved.

7).Length Error: ±2mm, error is easy to adjusted.

Outpur table

It is simple and used to load finished product.

Length:6m

Spare Parts



1).Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2).Rubber mat 1 pcs;

3).Bolt spanner 1 pcs



Advantages of theEPS sandwich wall panel:
1)lower price and best quality
2)waterproof and Fireproof
3) 3.The advantage of the rock wool sandwich wall panel:
4)high strength
5)Durable
6)Heat insulation and Sound insulation
7) Energy-saving and Most area-saving
8) Environmental protection



Application:
It is widly used as roofing material for steel structure plant, gym, Supermatet ,commercial and civilian facilities.



Packaging Detail of sandwich panel roll forming machine :

Free packaging for you: Standard export packing: GP container ; main machine naked and fastened with iron wire in the container, rollers were painted with oil and packed with plastic film, control box will be packed with carton box

Delivery time:within 30 days

Productivity:50 sets per year in stock

Payment:T/T,30% after signed the contract,70% after checking and accepting before delivery

Product warranty:12 months,we provide technical support for whole life

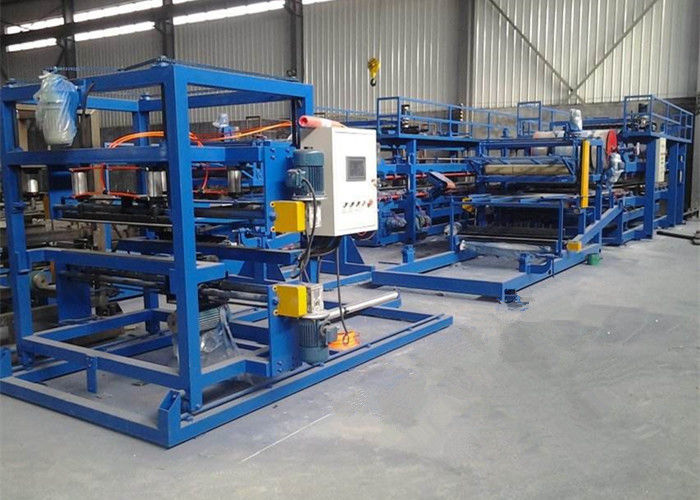

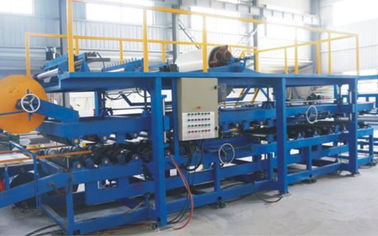

Machine shows:

380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine380V Sandwich Panel Roll Forming Machine , Sheet Metal Roll Forming Machine
