Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed

China Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed supplier
Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed supplier Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed supplier

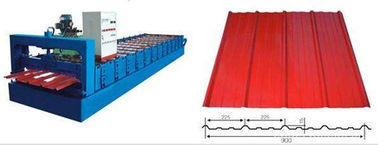

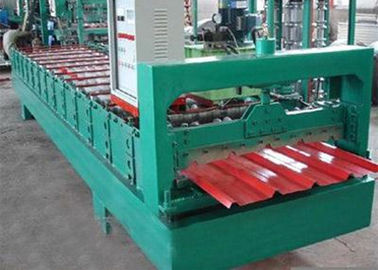

Large Image :  Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months
High Light:

metal roof forming machine

,

metal sheet forming machine

Galvanized Glazed Tile Roll Forming Machine With 8 - 12m / Min Working Speed



1.Specification:

Dimensions 5600*1500*1500mm
Large frame 300H steel
Rolling wheel Forging 45# steel
Diameter of roller 72mm
Roller station 9 rows
Main power 3kw with reducer
Rolling speed 8-12m/min
Rolling thickness 0.2-0.8mm
Feeding width 1000mm
Machine weight About 2 tons
Chain 1 inch
Middle plate 14mm



2.Automatic system(The PLC can be designed according to customers' requirement)

Pump station 3kw
PLC Panasonnic
Transducer Twiwan"Delta"
Encoder Wuxi's "REP"or "XINYA"
Switch "CHINT" or "DELIXI"



3.Component:

1) man-made manual decoiler-----1 set

2) Main roll forming machine--------1 set

3) Controlling system------------------1 set

4) Hydraulic system--------------------1 set



4.FAQ:

1):How to make an order you?
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2):How to go to our company?
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Tianjin Airport: then we can pick up you.
If any questions,you can call me mobile phone at any times:0086-13754536227

3).If the quality is good?
We have beening making and exporting the machines since from the year of 1998,not small factory or trading also with good after service.
