Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate

China Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate supplier
Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate supplier Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate supplier

Large Image :  Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Delivery Time: 40 Working days
Contact Now
Detailed Product Description
Type: Tile Forming Machine Use: Floor
Power: 15.0KW Machine Sizes: About 16*1.2*1.0m(L*W*H)
After-sale Service: Engineers Available To Adjustment Abroad

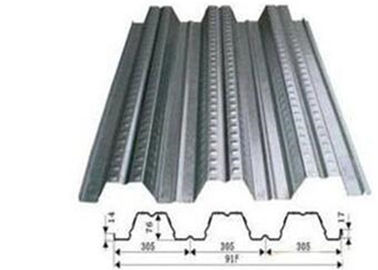

Decking Floor Steel Plate Forming Machine 915 Composite Floor Steel Decking Roll Forming Machine

1.Product Application

Floor decking roll forming machine’s main material is galvanized sheet material, via pressure-type device be pressed into different types of floor boards, mainly as a multi-level and multi-storey factory building structure instead of the original template. Floor decking machine replace the tradition way, this is a good way to protect woods. Using the floor deck can improve the rigidity of the floor, saving the amount of steel and concrete. It is a part of the structural strength. Compared with the old ways, using floor deck is easy to installation and construction, and can save much time.

2.Technical parameter:

Item Specification



Material

Type Pre-painted steel coil & galvanized coils
Thickness 0.8-1.2mm
Yield strength 235-345Mpa
Roller material 45#Chrome steel
Forming speed About 15m/min
Output speed 15m/min
Speed adjusting mode AC Frequency
Roller drive Decelerating motor + Chain drive
Cutting mode Hydraulic cutting
Cutter material Cr12 mould steel
Length measurement Encoder
Control mode Mitsubishi PLC+converter
Operating mode Button + Mitsubishi Touch screen
Main motor power(kw) 11KW*2
Hydraulic station motor power(kw) 5.5 KW



3. Components of machine:

Decoiler 1set (7T capacity)
Feeding & guiding device 1set
Main roll forming machine 1set
Hydraulic cutting system 1set
Controlling system 1set
Run out table 1set

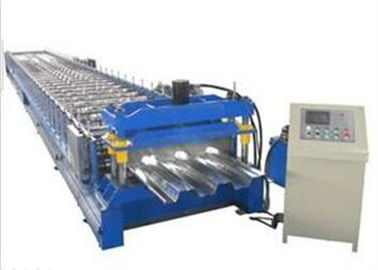

4.Machine shows

Galvanized Sheet Floor Deck Roll Forming Machine 0.8 - 1.2mm Thickness Plate
