Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

China Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter supplier
Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter supplier Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter supplier

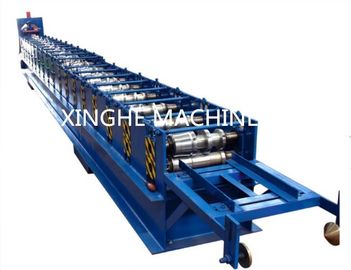

Large Image :  Square Pipe Cold Roll Forming Machines Color Steel Galvanized Downwater Rain Gutter

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH828

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production Capacity: 10-12m/min Place Of Origin: Botou,Hebei Province
Power(W): 3+3kw Voltage: 380v,50hz,3 Phrases
Dimension(L*W*D): 7400*1200*1500mm Weight: 3.2T
Certification: CE,ISO,TUV,BV Warranty: One Year Guarantee
After-sales Service: Engineers Available To Service Machine Color:: Any Color As You Like
Control System: Automatic PLC Control ODM: Available

Color Steel Galvanized Downwater Rain Gutter Square Pipe Roll Forming Machine

Processing technique
Processes: manual decoiler --- feeding table --- Roll forming machine --- PLC system --- Hydraulic system --- Post cut

♦Main Parameters of water gutter cold roll forming equipment:

No. main parameter of gutter roll forming machine
1 Suitable to process Color steel plate, galvanized sheet, aluminum coils and etc.
2 Width of the feeding material According to the profile
3 Rollers station 18 rows
4 Thickness of feeding material 0.3-0.8mm
5 Power 4+4kw
6 Size 8500*800*1500mm
7 Productivity 8-12m/min
8 Diameter of shaft 52mm
9 Weight About 4.8 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Wall thickness of main forming machine 16mm steel plate
14 Main structure of the machine 300 H steel
Custom according to customer requirements or drawings



The advantage of seamless rain gutter cold roll forming machine

seamless rain gutter cold roll forming machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

seamless rain gutter cold roll forming machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.

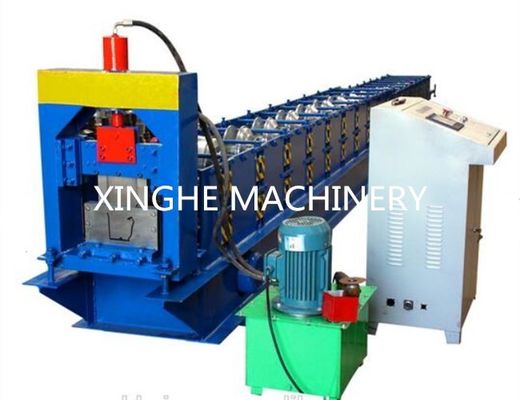

Product Pictures

new design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machinenew design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machinenew design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machinenew design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machinenew design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machine



Production Process

new design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machine

Packaging & Shipping

new design 2017 canton fair xinnuo metal seamless rain gutter cold roll forming machine



Packaging Details: Main machine is nude, the computer control box is packed with wooden frame.


Main machine is nude in the container, the computer control box is

packed with wooden packaging.

Delivery Detail: 20 days
