Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine

China Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine supplier
Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine supplier Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine supplier

Large Image :  Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH1050

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Production Capacity: 8-12m/min Place Of Origin: Botou,Hebei Province
Power(W): 3+3kw Voltage: 380v,50hz,3 Phrases
Dimension(L*W*D): 7400*1200*1500mm Weight: 2.5T
Certification: CE,ISO,TUV,BV Warranty: One Year Guarantee
After-sales Service: Engineers Available To Service Machine Color:: Any Color As You Like
Control System: Automatic PLC Control ODM: Available

Automatic Rollformers Corrugated Steel Sheet Metal Roof Wall Panel Glazed Tiles Roll Forming Machine



All the technical parameters are also made as per the cutomers' requirements.

1.Weight capacity of decoiler 2.5T
2.Appearance Size(L*W*H) 7400*15200*1500
3.Raw material /feeding sheet material Colored steel & galvanized steel
4.Roller material 45used roll forming machine high grade steel
5.Shaft material 45used roll forming machine high grade steel
6.Kind of drive Chain drive
7.Cutting system Automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10.Control system Totally automatic PLC control system
11.Main power 3 kw
12.Roller stations 13 rows
13.Speed of production 8-12m/min
14.Thickness of colored steel 0.3-0.8mm
15.Feeding width 1000mm

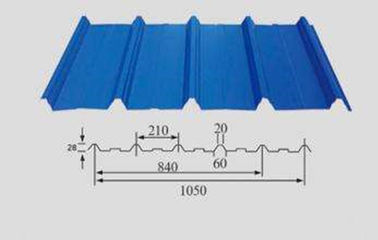

16.Effectiv width 1050mm
15.Frame material 300 H-steel

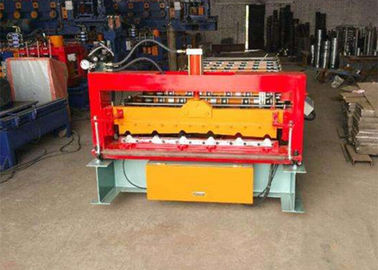

Machine photos

Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming MachineAutomatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine

Before use the Automatic Rollformer Corrugated Steel Sheet Roof Panel Roll Forming Machine, you need to check the connections around the firm, installation bolts, nuts are tightened, the left and right chassis should be sufficient lubrication oil, the power to start the machine to test the first empty car carefully observed, with or without vibration, noise, oil window Whether the oil, the parts movement is coordinated, everything is normal before you can install the mold, install the mold, you must cut off the power, manually moving the motor belt or gear, the table indexing, and the slider to the highest point, It is best to use an object support between the table and the bottom of the carriage to prevent the carriage from falling, causing an accident.
