PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine

China PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine supplier
PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine supplier PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine supplier

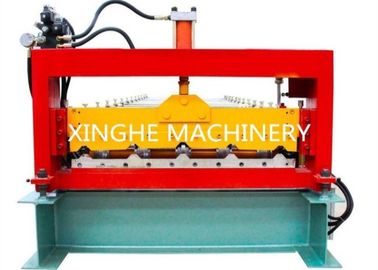

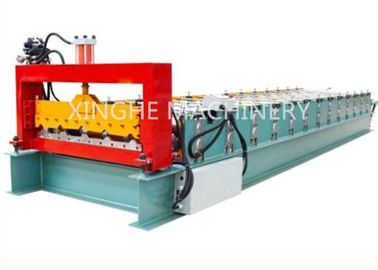

Large Image :  PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: XH840

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 4.0+4.0kw
Voltage: 380V 60HZ Or At Your Requirement Dimension: 8900*1300*1500mm
Machine Weight: 4.5Tons Warrenty: 12 Months Warrenty And Long-life After-sale Service
After-sales Service: Engineers Available To Service Machinery Middle Plate Thickness: 16mm
Control System:: PLC(imported Brand) Roller Material:: 45#steel Chrome Plated
Shaft Material:: 5mm Chrome Coated PLC Automatic Zinc Roofing Roll Forming Machine/Corrugated Roof Sheet Making Machine/ Roof Panel For: 75mm
Cutting Blade Material: Cr 12 High Grade Steel

Work flow

Manual uncoiler-- roll forming machine-- PLC control box-- hydraulic cutter- output table

840 gallvanized steel metal roofing sheet roll forming machine design manufacture


Machine parameter
Article No. Item Name Specification
1 Width of feeding material 1000 mm coil sheet
2 Thickness of feeding material 0.3-0.8 mm coil sheet
3 Roller station 9-15 stations
4 Shaft Diameter 65-75 mm
5 Productivity 8-12 m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 3.5-6 tons
9 length 5.5-11 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 5 tons
13 Motor 3-7.5 kw
14 Driving way Chain transmission
15 Chain size 0.6-2 inch
16 Cutting system Hydraulic cutter



Production process

PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine

Shipping



PLC Automatic Zinc Roofing Double Layer Roll Forming Machine / Roof Panel Forming Machine

Trade area



Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.



FAQ

1. Q: How to visit our company:

A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station

(1hour), then we can pick up you to factory(40min).

Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west

station(4.5 hours), then we can pick up you to factory(40min).

2. Q: What should I provide if I want to customized machine?

A: U need provide profile drawing, material, thickness, voltage and your special requirements.

3. Q: What is the Warranty?

A: Within 12 mounts, all technicals are ready to serve you at any time.

4. Q: What can you do if the machine broken?

A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send

new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.

5. Q: If need technician to workshop to debug and teach, how to do?

A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
