Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

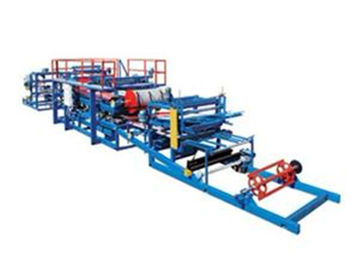

Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making

China Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making supplier
Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making supplier Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making supplier

Large Image :  Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making

Product Details:

Place of Origin: Botou, Hebei Province, China
Certification: BV ,CE , SGS, ISO:9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Supply Ability: 30 Set per month
Contact Now
Detailed Product Description
Condition: New Control System: PLC Control
Used: Roof Or Wall Model: 960mm/970mm/980mm/1000mm According To Customer

EPS Panel Production Line, EPS Sandwich Panel Production Line, Equipment for the Production of Sandwich Panels

Product Description

Main Feature:


With reasonable structure, the machine is easy to operate with completed functions.
The plate is formed through such processes as feeding, profiling , dispensing, heating, trimming, gouging and cutting.
The machine adopts precise low-speed metering pump, frequency control (or stepless speed variation) with computer control and dose is accurate.
It can produce flat plate and corrugated sheet of many specifications and models, including the sandwich panel with thickness of 40-300mm and width of 950-1200mm, and corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.
This machine applies to color steel plate, aluminum plate, stainless steel plate and so on.

The EPS Polystyrene sandwich panel machine line includes:

1. Uncoiler
2. Steel shaping machine
3. Compounding machine
4. Cutting machine

Technical Parameters:


ItemSpecification
Raw materialNormally 0.2-0.6 aluminum or color steel
Speed3-6m/min (Depend on the working temperature)
Cutting typeTrace flying saw cutting
DriveChain drive
Electric control systemPLC frequency conversion control
Core materialEPS board or rock wool
Total power35kw
Power supply380V/50HZ Or Customized
Annual Output600 thousand square meters
Product width

950-1200 mm (Flat Plate)
950-980 mm (Corrugated Composite Board)

Product thickness40-300mm
Equipment overall dimension (mm)24000*2100*2600 / 29500*2100*2600

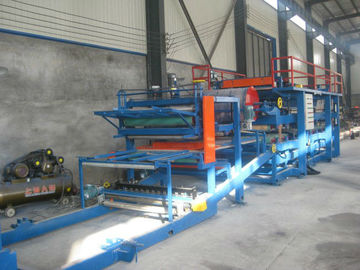

EPS Polystyrene Sandwich Panel Production Line

Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate MakingContinuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making
Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making
Continuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate MakingContinuous Sandwich Panel Roll Forming Machine For Roof Or Wall Plate Making


Our Services


1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. More spare parts are given to clients for free to ensure the factory working without suddenly stop.
5. 1 year free warranty, Lifetime technical service support.


Packaging & Shipping


 Standard export packing: In plastic paper or wrapped with film, etc. (or Customization)


FAQ


Q: Are you a trading company or a manufacture factory ?
A: We are pleased to introduce our company,  Our factory approved by BV, machines approved by CE & ISO9001 . Welcome to visit us for long business cooperation !
Q: Can your factory customize the machine for clients ?
A: Yes, we can.
Q: What is your payment terms ?
A: Normally, 30% as the deposit first by T/T, the rest 70% will be paid before shipping by T/T.
Q: How about after-sales service ?
A: 1 year free warranty, Lifetime technical service support.
Q: How can I install the production line and get a commissioning ?
A: We may send our engineer for installation and commissioning, but relevant cost will be paid by you.


Welcome to contact us for long business cooperation !
