Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed

China Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed supplier
Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed supplier Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed supplier

Large Image :  Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Use: Glazed Roof Sheet
Power: 4.0+3.0 KW Voltage: 380v Or According To Your Requirement
Warrenty: 12 Month Color: Blue, Orenge, Grey, Green Or As Cusomers Requirments

Botou 828 Glazed Tile RollForming Machine For Roof and Wall Glazed Steel Sheet Making Machine
Welcome to Contact your quality factory supplier directly Here.

Type 828 color steel sheet rool forming machine:
The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.

Technical parameter:

1.Suitable materialColor steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H): 6.5m*1.5m*1.4m
3.Main motor power3KW with Cycloidal reducer
4.Hydraulic station power3KW
5. Hydraulic oil pumpCB-E 310
6.Thickness of material0.2mm~0.8mm
7.Diameter of principal axisΦ70-90mm
8.Material expand width1000,1200,1250mm
9.Electric tension380V 3phase 50HZ or as the customer's requirements
10.Material of rollerHigh grade 45# forged steel plated with hard chrome plating
11.Controlling systemPLC
12.Processing speed 3-6m/min
13.Processing precision within1.00mm (depend on design)
14.Material of cutting bladeCr12 mould steel with quenched treatment
15.Kind of drive0.6 inch chain link bearing model 6210
16.Roller station8-20 Rollers or according to customer's requirments
17.Roller materialhigh grade 45#steel; Cr12 quenching
18. Leak frame load-bearing4.6T


We can Desgin and Manufacture the Machine accroding to clients' request! Please send us the enquiry with Profile Drawing

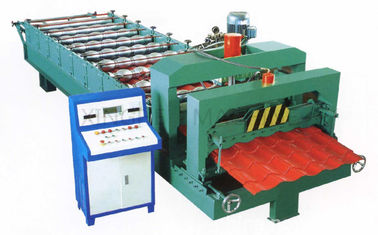

Picture of our roll forming machine:
Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed
Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed
Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed

Applications
Green Color Glazed Tile Roll Forming Machine With 3 - 6m / Min Processing Speed


Our Services

we are capable of designing machine totally as your panel sample and profile
drawing,please no hesitate to contact us.
warmly welcome to visit our factory and order machine, we promise to provide you
machine with best quality!


FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
