Home ProductsPurlin Roll Forming Machine

Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine

China Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine supplier
Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine supplier Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine supplier

Large Image :  Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Main body of machine is naked into the container, we can also provide plastic film if you need.
Delivery Time: 10 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI Coil / Glavanized Sheet Coil Use: C Purlin
Voltage: 15.5 KW Power: 380V, 50HZ,3 Phase

Automatic Change Size C Purlin Roll Forming Machine C60-250 Steel Frame Forming Machine



Product Application

C purlin formed by Fully Automatic C purlin roll forming machine, advantages of well compressive strength and flatness; automatic measuring, cutting and punching; high-level of automation and conveniently installation. It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

C purlin

Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler MachineEasy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine



Machine parameter

Article No. Item Name Specification
1 Width of feeding material <1000mm coil sheet
2 Thickness of feeding material 1.5-3.0 mm coil sheet
3 Roller station 8-18 stations
4 Shaft Diameter 75-95 mm
5 Productivity 8-25 m/min
6 Rollers' material Bearing steel
7 Shaft material 45# steel
8 Weight 9.5 tons
9 length 8-11m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 9.0 Tons
13 Motor 15.5kw
14 Driving way Chain transmission
15 Chain size 1.5-2 inch
16 Cutting system Hydraulic cutter

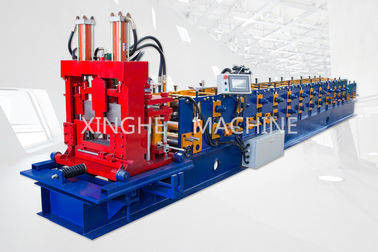

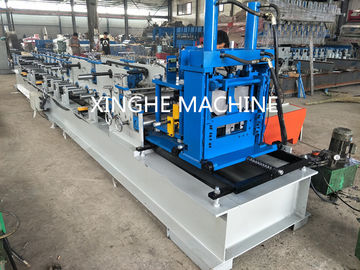

Machine shows

Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine

Easy Installation Purlin Roll Forming Machine With 9.0 Tons Uncoiler Machine


Our Service

A.One year guarantee for whole machine.
B.24 hours technical support by email or calling.
C.If there is any problem found of the machine, we will repair it for free in one year.



FAQ

1. How many years since you have been in this field?
Our company has been producing roll forming machines for almost 20years.
We have rich experience for manufacturing and designing the machine.
2. Where is the nearest airport?
Tianjin or Beijing, both are ok. Tianjin is nearest.
From Tianjin to Cangzhou, the high speed train, it takes only 30 minutes.
From Beijing to Cangzhou, it takes only 51 minutes.
We will go to Cangzhuo railway station to pick you up, if you come to visit our factory.
3. How about your quality and price?
Our machine uses the advanced technique, we are leading in this field.
Most of other roll forming machine factories, their boss are students of our general manager. We always leads first in this field.
The quality is among the highest.But the price is not high, it is low. Because our rich experience help us to do the highest quality machine but with lowest cost. Then our price is not high.



Our products are widely used in various industrial factory. And if you are interested in our products, please feel free to contact us ! Thank you!
