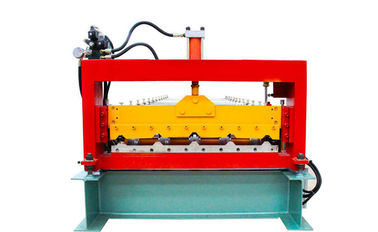

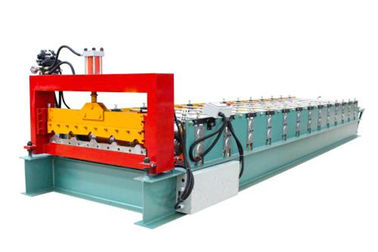

Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles

China Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles supplier
Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles supplier Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles supplier

Large Image :  Automatic Metal Roof Forming Machine Making 840 Width Colored Steel Tiles

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Use: Roof Sheet
Power: 4.0+4.0kw Voltate: 380V,50HZ,3 Phase

i840 Automatic Cold Steel Sheet Roof Panel Roll Forming Machine Reinforcing In China



Machine parameter



NO. Main Parameter of Double Roofing Steel Roll Forming Machine
1 Suitable to process Color steel plate
2 Width of the plate 1250mm
3 Rollers Up layer:12 rows Up layer:12 rows
4 Dimensions 8100*1550*1910mm
5 Power 4+4kw
6 Thickness of the plate 0.3-0.6mm
7 Productivit 4-15m/min
8 Material of the cutting blade Cr12
9 Diameter of the roller Φ70mm
10 Weight About 6.2T
11 Voltage 380V 50Hz 3phases
12 Control system

PLC control





FAQ

Q: Do you have after sales service?

A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business booming.

Q: Once we've bought a Roofing Panel Roll Forming Machine from you, are you able to supply us with raw material?

A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorized hydraulic decoiler

Q: Do you have a warranty on your machines?

A: One year warranty and lifelong technical support.

Q: What sales terms do you have?

A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings

Q: Once a machine arrives at our factory what happens then?

A: We will send you a highly skilled technician or engineer that will install your machine, with training for your staff if required at a separate fee.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you

Q: What kind of control system do you use on your machines?

A: Delta, Panasonic,Schneider, Siemens, and Mitsubishi etc.

Q: What is your delivery time?

A: Depending on the type of machine, duration of 25 days to 65 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?

A: Yes.Regular updates on progress will be sent to you
