Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control

China Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control supplier
Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control supplier Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control supplier

Large Image :  Colored Steel Wall Panel Roll Forming Machine With 7 Inch Touch Screen Control

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 40 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Contact Now
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Use: Roof Sheet
Power: 4.0+4.0kw Voltate: 380V,50HZ,3 Phase

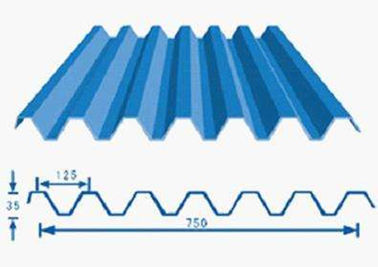

750 IBR Steel Roofing Sheet Roll Forming Maching, Roof Tile Make Machine

Work flow

Mannual decoiler--Feeding Material--Staightening--Roll forming machine--PLC control system--Hydraulic Cutting--Output table

High speed metal roof tile IBR sheet roll forming machine for roof and wall



Product Description

A.Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 45# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.
Treating process: tempering- finish turning, high rigidity, hard to deform.

Cutting

Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.



B. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Panasonic
Well-adapted to various conditions, such as moisture,electromagnetic disturbance.
Frequency Converter

It has the advantage of slowing down before cutting,to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).

Length

Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.

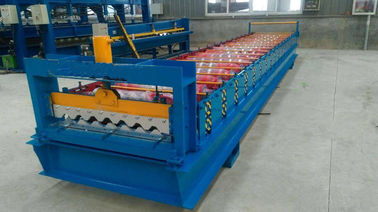

Picture of Machine

High speed metal roof tile IBR sheet roll forming machine for roof and wallHigh speed metal roof tile IBR sheet roll forming machine for roof and wall

High speed metal roof tile IBR sheet roll forming machine for roof and wall

Component

Main Component:

High speed metal roof tile IBR sheet roll forming machine for roof and wall Name:PLC

Brand:Panasonic Japan

Panasonic PLC is adopted to organize all actions of the machine. The length of workpiece is adjustable according to the setting of on the PLC. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components. And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

Name: Encoder
Brand:OMRON
We understand that the encoder is a very important part of the cutting to length system, so we only adopt the best quality from OMRON Japen. And we offer enough matching couplings to make the machine will never shut off due to the encoder problem.
High speed metal roof tile IBR sheet roll forming machine for roof and wall
High speed metal roof tile IBR sheet roll forming machine for roof and wall Brand:China
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
Power of The Pump:4kw
Hydraulic oil :40#
