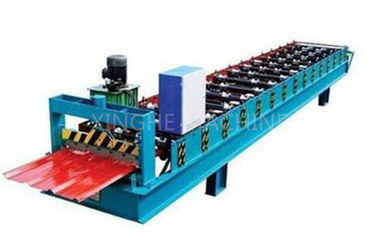

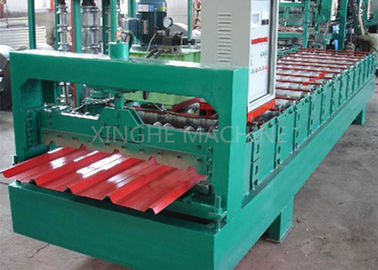

1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine

China 1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine supplier
1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine supplier 1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine supplier

Large Image :  1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Brand Name: XINGHE
Certification: BV,SGS, CE,ISO9001
Model Number: 1050

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Voltage: 380V 60HZ Or At Your Requirement Warrenty: 12 Months Warrenty And Long-life After-sale Service
High Light:

metal roll forming machine

,

sheet roll forming machine

1050 Automatic Roof Metal Sheet Roll Forming Machine



All the technical parameters are also made as per the cutomers' requirements.

1.Weight capacity of decoiler 2.5T
2.Appearance Size(L*W*H) 7400*15200*1500
3.Raw material /feeding sheet material Colored steel & galvanized steel
4.Roller material 45used roll forming machine high grade steel
5.Shaft material 45used roll forming machine high grade steel
6.Kind of drive Chain drive
7.Cutting system Automatic hydyaulic cutting
8.Cutting blade material Cr 12 high grade steel
9.Frame material 300 H-high grade steel
10.Control system Totally automatic PLC control system
11.Main power 3kw
12.Roller stations 8-12m/min
13.Frame material 300 H-steel
14.Thickness of colored steel 0.3-0.8mm
15.Feeding width 1000mm











1050 Automatic Roof Metal Sheet Roll Forming Machine / Galvanized Sheet Metal Forming Machine

  Our metal tile cold roll forming machine with high speed is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.

  Different roof panel forming machines can produce different shapes of steel roof wall sheets according to the client’s profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theatres, factories, warehouses, garages, exhibition centers etc. The complete machine includes the uncoiler, main forming machine, computer controlling system and run out tables.



RAQ

Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machineries?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 10 years.We have rich experience for manufacturing and designing the machine.
