Home ProductsHighway Guardrail Roll Forming Machine

22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip

China 22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip supplier
22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip supplier 22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip supplier

Large Image :  22mm Thickness Sheet Metal Forming Equipment Suitable To Process Steel Strip

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 40 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Voltage: 380V 60HZ Or At Your Requirement
Power: 15.5+7.5Kw After-sale: Engineers Available To Service
High Light:

sheet metal rolling machine

,

guardrail forming machine

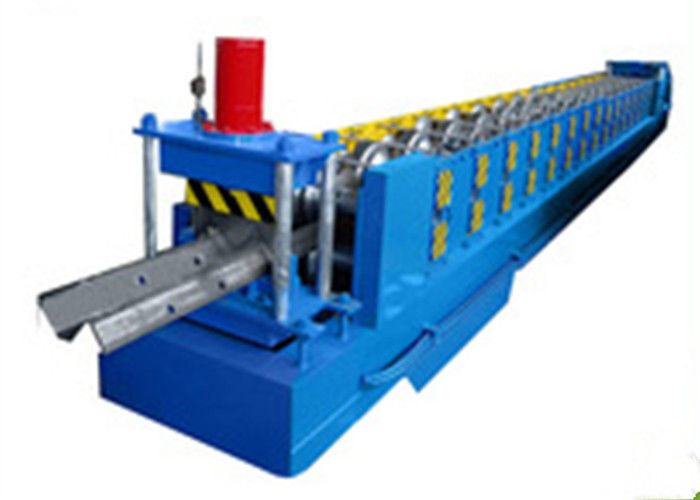

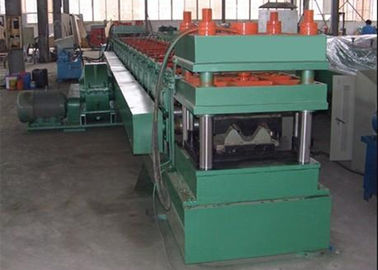

Highway Guardrail High Quality Roll Forming Machine, Galvanized Sheet Metal Manufacturing Machine



Machine parameter

NO.  Guardrail Roll Forming Machine
1 Suitable to process Steel strip
2 Effective width 480mm
3 Feeding width 310mm
4 Forming steps 18 stands
5 Shaft material 45# forged steel, hard chrome plated within 0.05mm
  Roller material Gcr15,Quenched
6 Diameter of shaft 85mm
7 Main frame 400 I-beam steel
8 Main motor power 15.5 kw
9 Pump power 7.5 kw
10 Sidewall Thickness 22mm
11 Drive type Gear box transimission
12 Connection Universal coupling
13 Cutting Blade Cr12 mould steel
14 PLC brand Delta,Taiwan
15 Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).



Highway guardrail sheet sizes

Highway Guardrail high quality roll forming machine, galvanized sheet metal manufacturing machine
