Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+4.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | 12 Months |
| High Light: | trapezoidal sheet roll forming machine,roofing sheet making machine |
||

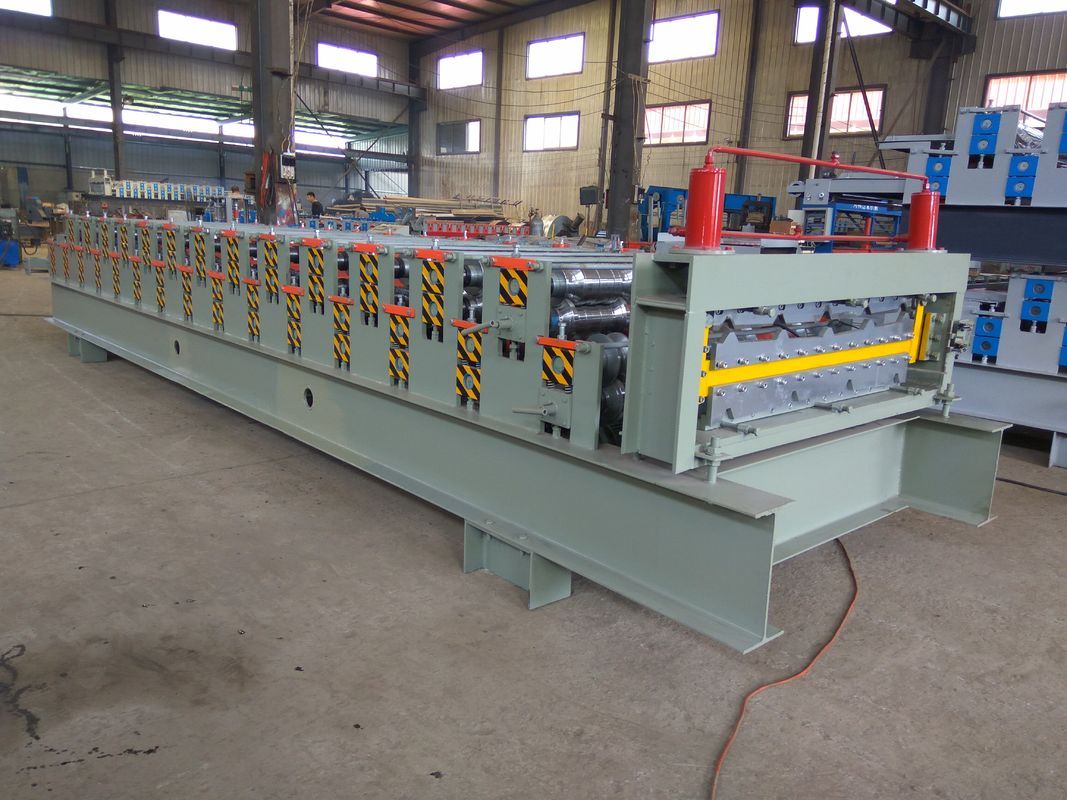

Double Layer Roll Forming Machine Wall Panel tile making machine
Technical Parameters of 840/850 double layer roll forming machine
| No. | 840/850 coloured metal roofing sheets double layer roll forming machine | |
| 1 | Suitable material | color steel sheet, galvanized steel sheet, aluminium sheet |
| 2 | Material width | 1000mm or as your required |
| 3 | Material thickness | 0.3-0.8 or as your required |
| 4 | Working speed | 8-12m/min, or can be 20m/min according to customers' need |
| 5 | Main motor power | 4.0kw with cycloidal with reducer |
| 6 | Hydraulic pump power | 4.0kw |
| 7 | Electrical control system | PLC control system with inverter |
| 8 | Shaft diameter | 75mm |
| 9 | Roller station | 9 rows /11 rows, depend on your panel profile drawing |
| 10 | Roller | high grade 45# steel, hard chrome plating |
| 11 | Working time | 24 hours |
| 12 | workers | 1-2 only |
| 13 | Cutting head material | Cr 12 mould steel with quenched treatment |
| 14 | Voltage | 380V 3Phase 50Hz or as your required |
| 15 | Weight | 4.5T |
| 16 | Dimension | 6850mm*1500mm*1500mm |
1 Main forming machine and un-coiler is naked.
2 Tighten to container with steel wirerope and welded machine with container by angel iron.
3 PLC system and motor can be packed in waterproof plastic coverage if needed and necessary. Three sets of roll forming machine can be loaded in one 20-foot container
