Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Use: | Roof Sheet |
| Power: | 4.0+4.0kw | Voltate: | 380V,50HZ,3 Phase |
| High Light: | roofing sheet roll forming machine,metal roof roll forming machine |
||

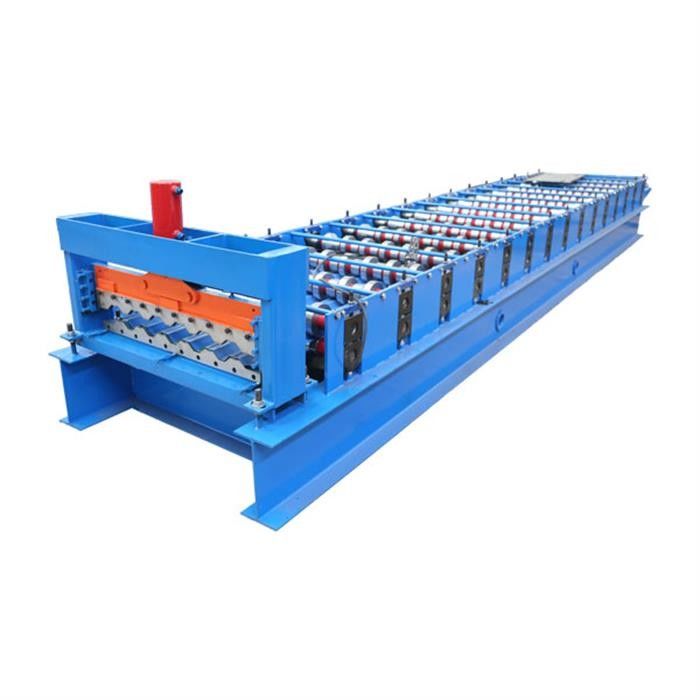

(1). Brief Introduction
The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,
ancient architectures and modern villas.
(2). Working Flow of Roll Forming Machine
Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter in the Roof Panel Wall Plate Equipment Forming Machine
(3).Technical Detail
A. General
| Suitable Material | Q235 or equivalent |
| Material Thickness | 0.25-0.8 mm |
| Material Width | 914, 1000, 1200, 1220 or 1250, as per the drawing |
| Dimension | About 5.9*1.3*1.1m(L*W*H) , as per the drawing |
| Working Space | About 15.9*2.8m(L*W) , as per the drawing |
|
Length of the Sheet |
You can set the length according to your need. It is controlled by PLC which can ensure the accuracy of ±1mm. |
| Cutting |
Automatically stop and cutting when it comes to the set length. |
B. Components Details
| Roller Material | High grade 45# steel. Hard chrome plating, 0.05mm. |
| Main Frame | 350# steel. More stable and no shaking. |
| Middle Plate |
16mm. We use thicker plates to ensure stability of our products. |
| Forming Steps | 11-16, according to the drawing. |
| Shaft Material | Φ70 mm, high grade 45# steel. |
|
Treating process: tempering- finish turning, high rigidity, hard to deform. |
|
|
Cutting Blade Material |
Cr12, hardness HRC60-62. |
| Treating process: heat treatment- plane abrasion- wire electrode cutting. |
C. Electric Components
| Suitable Power | 380V, 50 Hz, 3 phase or according to your need. |
| Screen | 7 inch touch screen, easy to operate. |
| PLC | Delta DVP 14ES |
|
well-adapted to various conditions, such as moisture, electromagnetic disturbance. |
|
| Frequency Converter |
DeltaVFD- M. It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
|
Length Measurement Device |
Omron, made in Japan. |
| It features with high accuracy and stability. |
The Application of color tile roofing sheet making machine
Roof Panel Wall Plate Equipment Forming MachineThis type of tile has advantage inclouding beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.
Other Products for Choosing
We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,
shutter door machine, floor decking machine and other associated equipment.
Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
