380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine

China 380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine  supplier
380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine  supplier 380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine  supplier 380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine  supplier

Large Image :  380V Double Layer Roll Forming Machine , Roofing Sheet Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months
High Light:

double deck roll forming machine

,

trapezoidal sheet roll forming machine

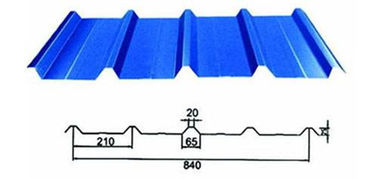

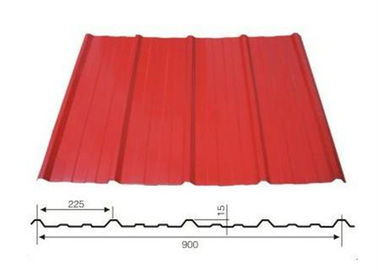

840/900 Roof Panel Double Layer Roll Forming Machine / Double Layer Cold Forming Manufacturing Line



Machine parameter

Product name Double layer roll forming machine
NO. Items Parameters Remark
1

Suitable



Material

Type GI/PPGI/AL
Width 1000mm Custom
Thickness 0.3-0.8mm
2

Product

Specifications

Length Any length
Length Tolerance within 1mm
3 Working Speed 8-12 m/min Standard machine
4 Control System Mitsubishi/Siemens PLC& transducer Custom
5 Total Power About 3.0KW+3.0KW
6 Total Weight About T Up to final design

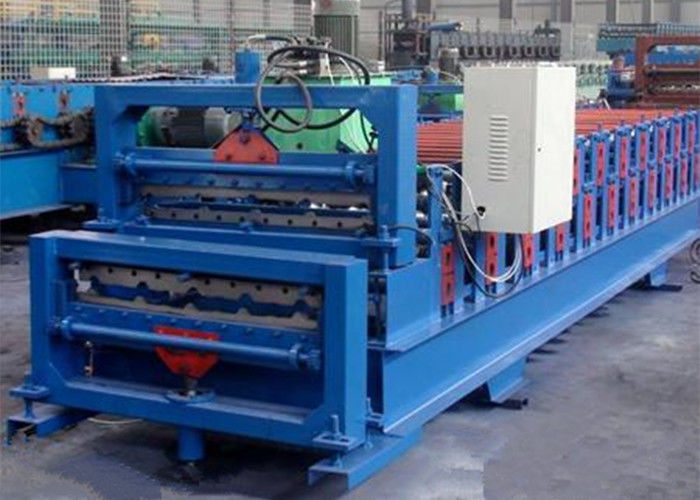

Glazed tile and Roof panel double layer roll forming machine/ Double Layer Cold Forming Manufacturing Line

No   Technical Specification
1 Auto-Uncoiler Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand. Loading capacity:5T,Inner diameter: 500-508mm
2

Hydraulic System

Computer Control Cabinet

Power:4kw,Hydraulic oil: 40#

hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

The target piece`s length is adjustable and digit of it can be adjusted

Computed mode has two modes: automatic and manual one. The system is easy to operate and use

PLC:EURA

3 Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12,Quenching treatment

4 Auto Stacker

Start reducer quickly after finish cutting products, deliver products to hold arms by deliver rollers

Then pneumatic control stack on the store table which is movable

Pneumatic pump (power sources) is self supply.
