380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

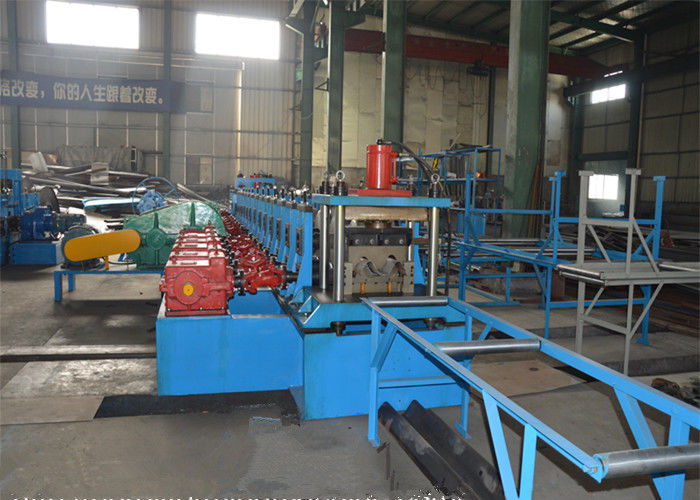

380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler

China 380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler supplier
380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler supplier 380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler supplier 380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler supplier

Large Image :  380V Highway Guardrail Roll Forming Machine / Roll Former Machine With Decoiler

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 40 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Voltage: 380V 60HZ Or At Your Requirement
Power: 15.5+7.5Kw After-sale: Engineers Available To Service
High Light:

sheet metal rolling machine

,

guardrail forming machine

Parameters

1 Inner diameter of manual decoiler 500mm
2 Outer diameter of manual decoiler 1000mm
3 Weight capacity of manual decoiler 5T
4 Appearance Size 14.8*1.05*1.5m
5 Raw Material colored steel or galvanized steel
6 Roller material high grade 45# forged steel,polished,heated,quenched
7 Blade Material CR12 with polished
8 Chrome Coating coated with 0.05mm hard chrome
9 Control System PLC control
10 Main motor power 15KW
11 Hydraulic Power 7.5KW
12 Roller station 16 rollers
13 Material of chain high grade 45# steel:polished,heated,quenched HRC 45-50
14 Speed of Product 7-8m/min
15 Thickness range 1-3mm
16 Type of cutting hydraulic cutting
17 Coil Width according to your requirment
18 Cover Width according to your requirement
19 Material of rack complete welded structure of A3 steel plate
20 Machine frame stand welded with 300H-steel
21 Type of forming machine single station with chain transmission
22 Thickness of frame 24mm
23 Shaft Diameter 80mm
24 Weight about 3.5T
25 Voltage 380V 50HZ 3Phases( or as your local requirement)
26 Electrical control PLC frequency control system

PS: the above are for reference; customized design is provided.



Working Flow


760 JCH Standing Seam Roll Forming Machine



Process

* The process of roll forming is one of the simpler manufacturing processes.



1. It typically begins with a large coil of sheet metal, between 1 in. and 20in. in width, and 0.004 in. and 0.125 in. thick, supported on an uncoiler.



2. The strip is fed through an entry guide to properly align the material as it passes through the rolls of the mill, each set of rolls forming a bend until the material reaches its desired shape.



3. Roll sets are typically mounted one over the other on a pair of horizontal parallel shafts supported by a stand(s).



4. Side rolls and cluster rolls may also be used to provide greater precision and flexibility and to limit stresses on the material.



5. The shaped strips can be cut to length ahead of a roll forming mill, between mills, or at the end of the roll forming line.



Our Services

1. We provide our customers with 1 year warranty.

2. Any parts damaged because of quality problem will be changed for free within the first year.

3. Technical support is provided for free at the whole life of the machine.

4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.



Packaging & Shipping

1. Standard packaging: Main machine is naked. Computer control system is packed by carton box. Hydraulic pump in waterproof bubble wrap. spare parts in carton box.
2. pack according to customers' requirements.


FAQ

1. What's your payment terms?

Payment: 30% deposit by T/T before production and the balance 70% after inspection confirmation before shipment.

2.The delivery time?

We deliver the machine within 30-45 days after receiving the deposit.

3. What services do you provide?

We provide our customers with 1 year warranty and technical support is provided for free during whole life of our equipment.
