380V Roof Panel Wall Plate Equipment 0.25-0.8 Mm Material Thickness

China 380V Roof Panel Wall Plate Equipment 0.25-0.8 Mm Material Thickness supplier

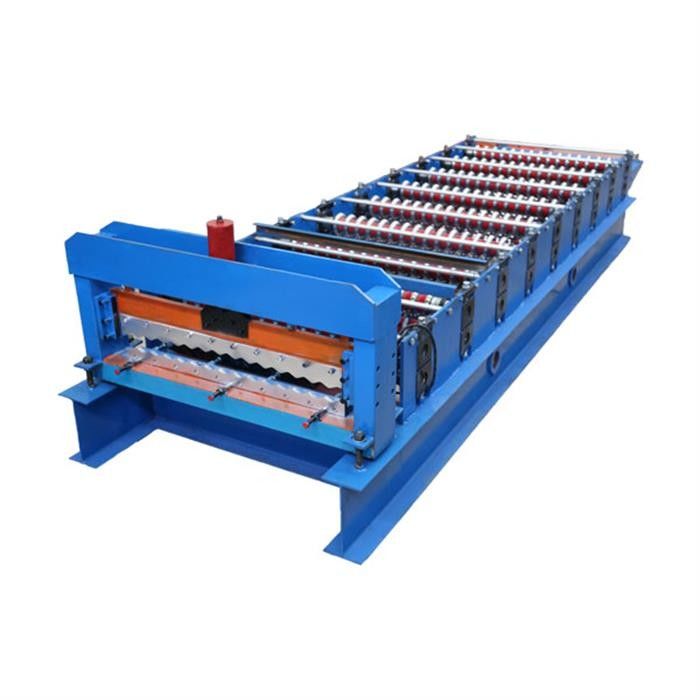

Large Image :  380V Roof Panel Wall Plate Equipment 0.25-0.8 Mm Material Thickness

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Use: Roof Sheet
Power: 4.0+4.0kw Voltate: 380V,50HZ,3 Phase
High Light:

roofing sheet roll forming machine


metal roof roll forming machine

380V Roof Panel Wall Plate Equipment Forming Machine
Product Description

(1). Brief Introduction

The Roof Panels made by our Roll Forming Machine have beautiful appearance and bright color.

They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands,

ancient architectures and modern villas.


(2). Working Flow of Roll Forming Machine

Decoiling the sheet-Sheet guiding-Roll forming-Measure length-Cutting the panel-Panels to the supporter in the Roof Panel Wall Plate Equipment Forming Machine



(3).Technical Detail


A. General

Suitable Material Q235 or equivalent
Material Thickness 0.25-0.8 mm
Material Width 914, 1000, 1200, 1220 or 1250, as per the drawing
Dimension About 5.9*1.3*1.1m(L*W*H) , as per the drawing
Working Space About 15.9*2.8m(L*W) , as per the drawing

Length of

the Sheet

You can set the length according to your need.

It is controlled by PLC

which can ensure the accuracy of ±1mm.


Automatically stop and cutting when it comes to the set



B. Components Details

Roller Material High grade 45# steel. Hard chrome plating, 0.05mm.
Main Frame 350# steel. More stable and no shaking.
Middle Plate

16mm. We use thicker plates to ensure stability

of our products.

Forming Steps 11-16, according to the drawing.
Shaft Material Φ70 mm, high grade 45# steel.

Treating process: tempering- finish turning,

high rigidity, hard to deform.


Blade Material

Cr12, hardness HRC60-62.
Treating process: heat treatment- plane abrasion- wire electrode cutting.


C. Electric Components

Suitable Power 380V, 50 Hz, 3 phase or according to your need.
Screen 7 inch touch screen, easy to operate.
PLC Delta DVP 14ES

well-adapted to various conditions, such as moisture,

electromagnetic disturbance.

Frequency Converter

DeltaVFD- M. It has the advantage of slowing down before cutting,

to ensure the length accuracy (±1mm,

far better than industrial standard ±3mm).


Measurement Device

Omron, made in Japan.
It features with high accuracy and stability.



 The Application of color tile roofing sheet making machine


Roof Panel Wall Plate Equipment Forming MachineThis type of  tile has advantage inclouding beautiful, classical appearance and grace taste.

It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.



 Other Products for Choosing


We provide an extensive line of products, including: roof and wall panel machine, tile roof machine, purline forming machine,

shutter door machine, floor decking machine and other associated equipment.


Our roll forming machines are equipped with PLC control to ensure high accuracy and easy operation.
