4kw Aluminium Gutter Roll Forming Machine With Metal Sheet Bending Machine

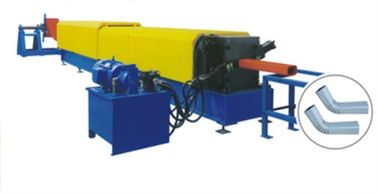

Large Image : 4kw Aluminium Gutter Roll Forming Machine With Metal Sheet Bending Machine

Product Details:

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	30 Working days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Production:	0-15m/min	Power:	4.0+4.0kw
Voltage:	380V 60HZ Or At Your Requirement	After-sale:	Engineers Available To Service
Highlight:	metal sheet roll forming machine , cnc roll forming machine

Downpipe Steel Rain Gutter Cold Roll Forming Machine/Aluminium Downpipe Water Rain Gutter Roll

Square pipe roll forming machine(Only for reference) Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
Maximum production speed: 0-15 metres per minute;
Material: 0.3-0.8mm, up to 235MPA GI or color steel

If you have your own special requirements,our machine can be also customized.

Profile as following:

Component

NO	Name	Unit	Qty
1	decoiler	set	1
2	main roll forming mcahine	set	1
3	electrical system	set	1
4	hydraulic system	set	1
5	cutting system	set	1

Technical Parameter

Item	specification
Voltage	380v,50/60Hz or as buyer’s request
Sheet thickness	0.3-0.5mm
Control system	PLC
Cutting type	Hydraulic guide pillar
Roller material	45# forge steel coated with chrome 0.05-0.07mm, quenched
Shaft material	45# steel
Width of material sheet	333mm or customized
Effective width	According to drawing
Working speed	8-12m/min or 20-40m/min drive by servo motor
Transmission type	Chains or gears
Cutting blade	Cr 12 mov quenched
Shaft diameter	55mm(70mm)
frame	350mmH type steel welded
Main motor power	5.5kw with cycloidal reducer
Hydraulic power	3kw
Hydraulic pressure	13mpa
Raw material	PPGI/GI
Rollers station	16 rows
