Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Tile Forming Machine |
---|---|---|---|
Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Voltage: | 380V 60HZ Or At Your Requirement |
Power: | 4+4KW | After-sale: | Engineers Available To Service |
High Light: | sheet metal roll forming machine,glazed tile roll forming machine |

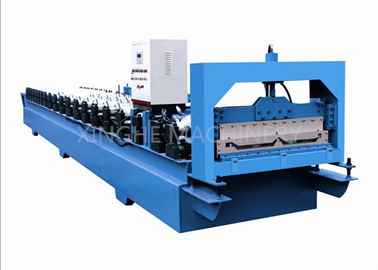

JCH 760 Galvanized Joint Hidden Roofing Panel Automatic Roll Forming Machine

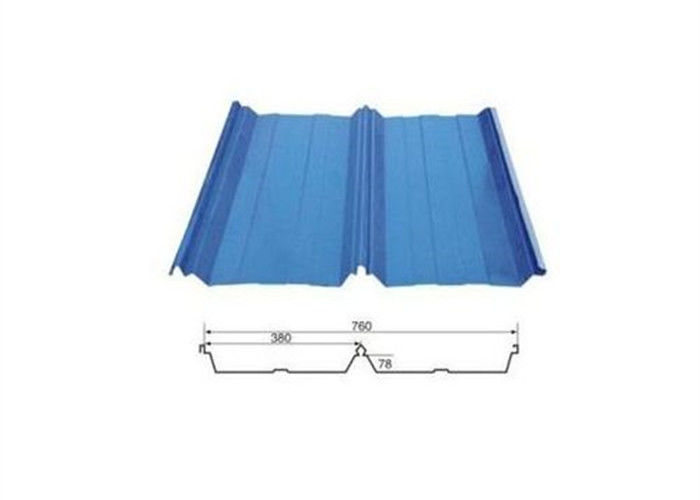

Parameters ( 760 JCH Standing Seam Roll Forming Machine )
No. | Main parameters | |
1 | Suitable to process | colored steel plate, galvanized plate |
2 | Control system | PLC control |
3 | Productivity | 10-12m/min |
4 | Width of the raw material | 1000mm |
5 | Thickness of the plate | 0.3-0.8mm |
6 | Rollers | 20 rows |
7 | Material of rollers | 45#steel plated with chrome |
8 | Diameter of the rollers | Φ70mm |
9 | Machine base | 400mm H steel |
10 | Material of the cutting blade | Cr12 with quenching treatment |
11 | Dimension | 9500*1400*1300mm |
12 | Weight | About 5000kg |
13 | Voltage | 380V |
14 | Power |
main motor power: 4kw hydraulic power: 4kw |
PS: the above are for reference; customized design is provided.
Working Flow ( 760 JCH Standing Seam Roll Forming Machine )
1. We provide our customers with 1 year warranty.
2. Any parts damaged because of quality problem will be changed for free within the first year.
3. Technical support is provided for free at the whole life of the machine.
4. Over-sea service is provided; the cost thus incurred shall be paid by the buyer.
1. Standard packaging: Main machine is naked. Computer control system is packed by carton box. Hydraulic pump in waterproof bubble wrap. spare parts in carton box.
2. pack according to customers' requirements.
1. What's your payment terms?
Payment: 30% deposit by T/T before production and the balance 70% after inspection confirmation before shipment.
2.The delivery time?
We deliver the machine within 30-45 days after receiving the deposit.
3. What services do you provide?
We provide our customers with 1 year warranty and technical support is provided for free during whole life of our equipment.
Machine shows
