Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+4.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | Dimension: | 7600*1300*1500mm |
| Machine Weight: | 3.0Tons | Warrenty: | 12 Months Warrenty And Long-life After-sale Service |
| High Light: | sheet metal roll forming machine,glazed tile roll forming machine |
||
Application:

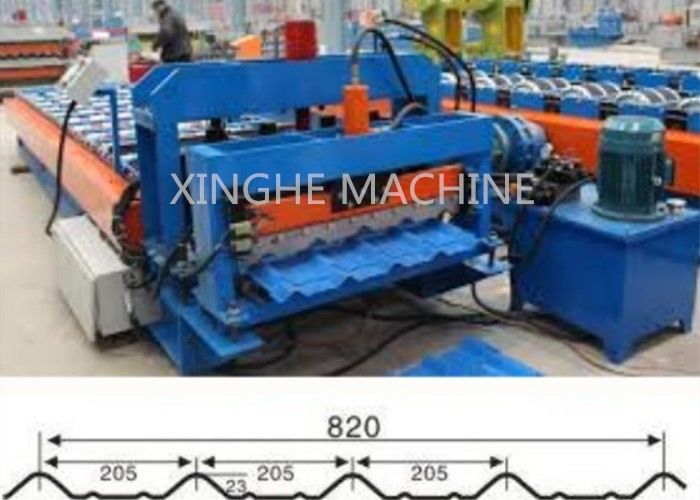

| No. | Main parameter of 820 metal glazing roof tiles roll forming machine | |
| 1 | Suitable to process | color steel,galvanized |
| 2 | Width of the plate | 1000mm |
| 3 | size | 6.5*1.5*1.5m |
| 4 | Main machine n moter power | 4kw |
| 5 | Hydraulic unit power | 4kw |
| 6 | Thickness of the plate | 0.3-0.6mm |
| 7 | Productivity | 3-5m/min |
| 8 | Diameter of the roller | Φ75mm |
| 9 | Voltage | 380V 50Hz 3phases |
| 10 | Material of the cutting plate | Cr12 |
| 11 | Control system | PLC control |
Technical process:
Manual decoiler---feed with guide---roll forming---press step---cut with fixed length---output with table

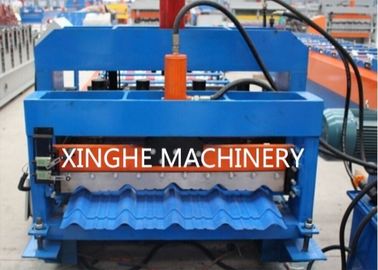

Process of the roll forming machine
Component line
| NO | Name | Unit | Qty |
| 1 | Man-made decoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
Our packaging and shipping:
1:Nude in container with plastic film.
2:We can do the packaging according to your need.
