Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Voltage: | 380V 60HZ Or At Your Requirement |
| Power: | 4.0+4.0kw | After-sale: | 12 Months |
| High Light: | step tile roll forming machine,sheet metal roller machine |
||

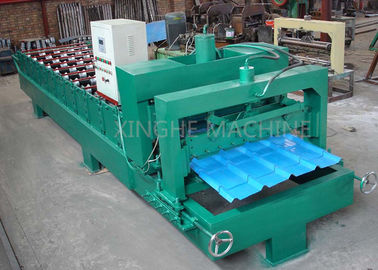

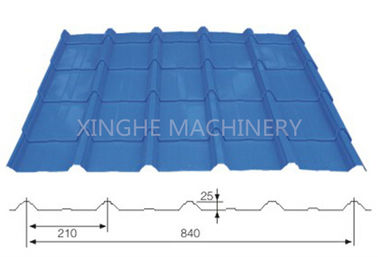

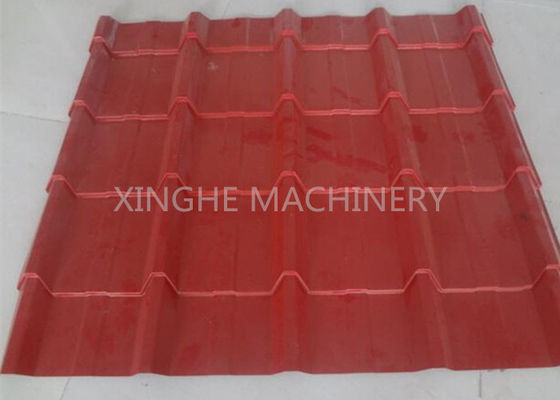

840 Long Span Roofing Sheet / Single Sheet Roof Sheet Glazed Roll Forming Machine
Working Flow
It is flow chart of glazed roll forming machine. Focus on cutting system. We find that there is press mold behind cutting system. It is using for press the steps. That is different with roof tile roll forming machine. So the speed of glazed roll forming machine can not reach 8-12m/min. And capacity is 3-4m/min. If you need faster, servo motor system can reach 4-8m/min. company can design and produce servo motor system glazed roll forming machine for you.
Machine parameter
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table
| Article No. | Item Name | Specification |
| 1 | Width of feeding material | 1000mm coil sheet |
| 2 | Thickness of feeding material | 0.3mm-0.8mm coil sheet |
| 3 | Roller station | 11stations |
| 4 | Shaft Diameter | 75-95mm |
| 5 | Productivity | 3-4m/min |
| 6 | Rollers' material | 45# steel forge |
| 7 | Shaft material | 45# steel |
| 8 | Weight | 2.5 ton |
| 9 | length | 6.5m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control | PLC |
| 12 | Decoiler | 5Tons |
| 13 | Motor | 4.0kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 0.6 inch-2 inch |
| 16 | Cutting system | Hydraulic cutter |
