Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine

China Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine  supplier
Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine  supplier Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine  supplier

Large Image :  Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 30 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 4.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months
High Light:

cable tray roll forming machine

,

gutter roll forming machine

Hebei Automatic Aluminum Plate Concrete Roof Ridge Cap Roll Forming Machine

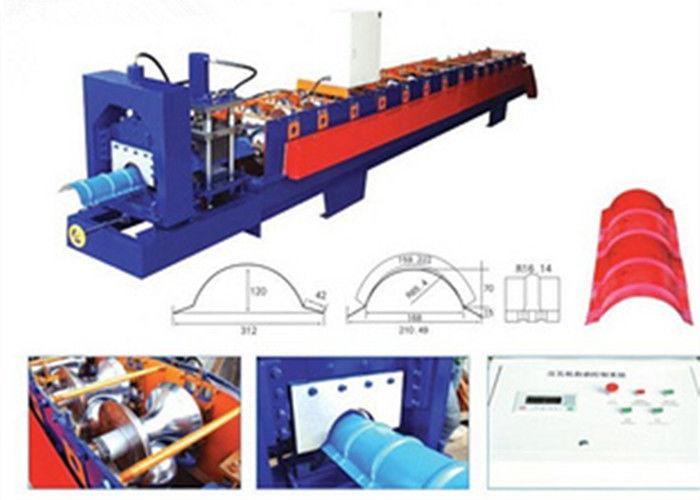

312 Ridge cap drawing
Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine

Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine



Working flow

Hebei Automatic Aluminum Plate Concrete Roof Ridge Cap Roll Forming Machine

Decoiler---Feeding&Guiding---Roll Forming Machine---Hydraulic Pressing&Cutting---Receiving Table



Machine parameter

No.
1 Suitable to process GI/PPGI/AL
2 Control system PLC control
3 Productivity 12m/min
4 Width of the raw material customized
5 Thickness of the plate 0.3-0.8mm
6 Rollers 14rows
7 Material of the rollers 45# steel plated with chrome
8 Diameter of the rollers Φ80mm
9 Roller chrome thickness 0.05mm
10 Material of the cutting blade Cr12 with quenching treatment
11 Dimension 8000*700*750
12 Weight About 3.4t
13 Voltage 380V 50Hz 3Phases

14

Power

main motor power: 4kw

hydraulic pump power: 4kw


Component

NO. Item Unit Qty
1 Manual decoiler set 1
2 Main roll forming machine set 1
3 PLC control box set 1
4 Supporter table set 1

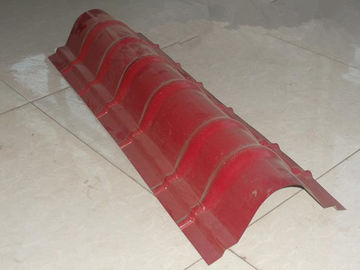

Machine show
Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine Aluminum Ridge Cap Roll Forming Machine , Glazed Tile Roll Forming Machine



Warranty:

12 months, during which all parts damaged because of quality problem will be changed for free.



Delivery Time:

Within 30-45 days after receiving prepaid. Some machines in stock, can be delivered at any time.



Payment Terms:

30% deposit is paid before production, the balance paid after inspection confirmation before shipment.



Install and Training:

If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.


FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
