Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI Coil / Glavanized Sheet Coil | Use: | Z Purlin |
| Voltage: | 7.5KW+5.5KW | Power: | 380V, 50HZ,3 Phase |
| High Light: | c channel roll forming machine,ceiling channel roll forming machine |
||
Automatic C / Z / Omega Profile Steel Purline Machine / C Z Purlin Cold Roll Forming Machine
| NO. | Items | Parameters | Remark | |
| 1 |
Suitable Material |
Type | GI/PPGI/AL | |
| Thickness | 2.0-3.0mm | |||
| 2 |
Product Specifications |
Length | Any length | |
| Length Tolerance | ±2mm/6m | |||
| 3 | Working Speed | 25 m/min | Standard machine | |
| 4 | Control System | Mitsubishi/Siemens PLC& transducer | Custom | |
| 5 | Total Power | 22 KW | ||
| 6 | Total Weight | About 6.2T | Up to final design | |
Components of Z section steel purlin cold roll forming machine:
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | Post cut | set | 1 |
| 6 | Electric motor | set | 1 |
| 7 | Output table | set | 1 |
Machine parameter
| Item | Parameter | |
| Material Thickness | 2-3mm | |
| Size of C purlin | 80-300mm | |
|
Power Specs |
Voltage | 380V/3PH/50HZ |
| Main Motor | 7.5kw | |
| Hydraulic motor | 5.5kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Flattening shafts | 7 rollers, diameter: 100mm |
| Main forming stations | 13 steps | |
| Forming Shaft | diameter 85 mm, 45# steel thermal refining | |
| Roller Material | GCR15 bearing steel quenching HRC58-60° | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 2 inch | |
| Wall Plate | 20mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment60-62° | |
| Punch Mould (if needed) | Cr12 quenched | |
| Forming Speed | 7-10m/min for standard solution | |
| Cutting system | Length-set cutting after roll formed | |
| Control System | Delta PLC and Inverter | |
| Manual decoiler |
Max width of coiling: 1000mm Max weight of loading: 5000kg |
|
| Output Supporter | 2 Pcs Simple Supporter | |
| Dimension of the machine | 7.5m×1 m×1.5m | |
| Weight of the machine | 5.5 Ton | |
A.One year guarantee for whole machine.
B.24 hours technical support by email or calling.
C.If there is any problem found of the machine, we will repair it for free in one year.
1. How many years since you have been in this field?
Our company has been producing roll forming machines for almost 20years.
We have rich experience for manufacturing and designing the machine.
2. Where is the nearest airport?
Tianjin or Beijing, both are ok. Tianjin is nearest.
From Tianjin to Cangzhou, the high speed train, it takes only 30 minutes.
From Beijing to Cangzhou, it takes only 51 minutes.
We will go to Cangzhuo railway station to pick you up, if you come to visit our factory.
3. How about your quality and price?
Our machine uses the advanced technique, we are leading in this field.
Most of other roll forming machine factories, their boss are students of our general manager. We always leads first in this field.
The quality is among the highest.But the price is not high, it is low. Because our rich experience help us to do the highest quality machine but with lowest cost. Then our price is not high.

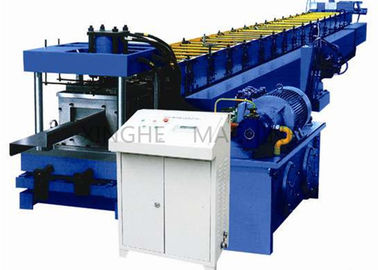

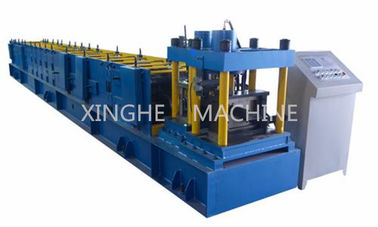

Machine shows
