Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel

China Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel supplier
Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel supplier Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel supplier

Large Image :  Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 20 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Power: 3.0+3.0kw
Voltage: 380V 60HZ Or At Your Requirement After-sale: 12 Months
High Light:

trapezoidal sheet roll forming machine

,

roofing sheet making machine

China double Layers Metal Sheets Roofing Roll Forming Machine, Color Steel Roofing Tile Roll Forming Machine



Color Steel Roofing Profile Double Layer Roll Forming Machine

The HC26/37 Color Steel Roofing Profile Double Layer Roll Forming Machine can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.



Sheet sizes

Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel


Machine parameter

No. main parameter of 1050/1080 double layer galvanized color steel wall and roof panel roll forming machine
1 Suitable to process Color steel plate
2 Width of the plate 1200mm
3 Rollers Up:9 rows/ Bottom:11 rows
4 Dimensions 6.5*1.65*1.5m
5 Power 3+3kw
6 Thickness of the plate 0.3-0.8mm
7 Productivity 8-12m/min
8 Diameter of the roller Φ80mm
9 Weight About 4.0 T
10 Voltage 380V 50Hz 3phases
11 Rolling material Carbon Steel 45#
12 Material of the cutting plate Cr12
13 Processing precision Within 1.00mm
14 Control system PLC control

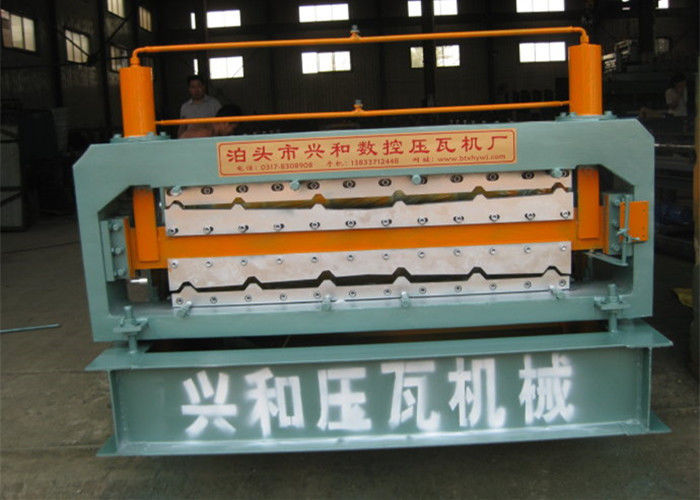

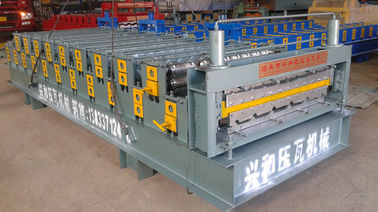

Machine shows

Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel
 Automatic Double Deck Roll Forming Machine For Making Steel Roof Panel





FAQ

1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. How to get a quotation?
a. Give me the profile drawing and thickness, this is the important.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
5. What can you do if the machine broken?
Our machine's warranty period is 12months! If the broken parts can't repair, we can send the new parts replace the broken parts free. If after warranty period,we can through negotiation for to solve the problems, and we supply the technical support for the whole life of the equipment.
6. Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
7. You are trade company or factory?
We are factory.
8. How long the machine could be made?
Normally speaking, common roof profile roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.

9.Payment: T/T, 30% in advance, 70% before shipment;

  Delivery Time: 40 days after receipt of the deposit;

  Packing: Plastic Film Cover

  Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra salary for our engineer will be paid by the buyer.

  Warranty: 1 years since the machine leave seller's factory.

  Maintenance: Life-long maintenance
