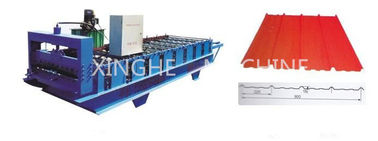

860/900 Roofing Color Glazed Tile Profile / Roof Panel Double Layer Cold Roll Forming Machine
Main Machine parameter
Item | Parameter | |
Suitable | Type | PPGI/GI/PPGL |
Thickness | 0.3-0.8mm | |
Wide | 914mm/1000mm/1200mm/1250mm/1450mm | |
Yield Strength | 230~550MPA | |

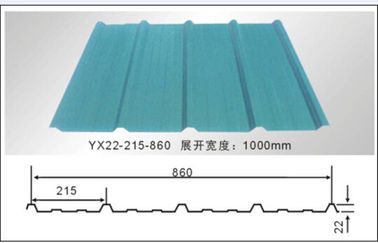

Product | Profile | Customized profile |
Effective width | Base on customized profile | |
Length | Any length | |
Power | Voltage | 380V/3PH/50HZ, accept customization |
Main Motor | 3.0kw | |
Hydraulic motor | 3.0kw | |
Hydraulic pressure | 10-12MPa | |
Machine | Forming steps number | 9 / 11 rows or as customers' requirment |
Shaft Material | 45 # steel tempered,Φ70~90mm | |
Roller Material | 45 # steel chrome coated | |
Main machine body | 350# H steel welded | |
Transmission | Chain and Sprocket, chain size 1 inch | |
Wall Plate | 14mm thickness | |
Blade material | Cr12 mould steel with quenched treatment 60-62° | |
Forming Speed | 8-12m/min for standard solution | |
Cutting system | Length-set cutting after roll formed | |
Control System | Delta PLC and Inverter | |
Manual decoiler | Max width of coiling: 1000~1450mm | |
Output Supporter | 2 Pcs Simple Supporter | |
Dimension of the machine | 7.5×1.3mm×1.5m(L*W*H) | |
Weight of the machine | About 3.0-4.5ton |
The Spare Parets of the Metal Profile Double Layer Roll Forming Machine
1.Manual Decoiler and Hydraulic fully automatic style is optional
Usage:It is used to support the steel coil and uncoil it in a turnable way.
2.Coil feeding part
Usage:Put the raw material(steel plate) through the beach to manufacture and process,
it can guarantee that the products are neat, parallel and everything is uniformity.

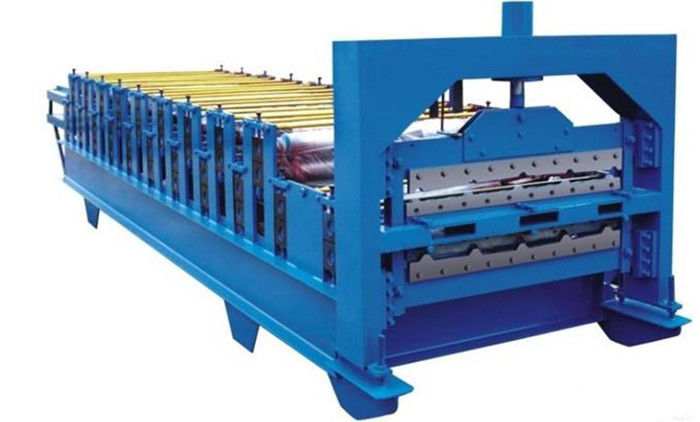

3.Main roll forming machine part
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
4. Automatic cuttting system
1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62
2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or
wasting, high level safety factor
5.Computer controlling part
1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.
6. Hydraulic station
1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet
