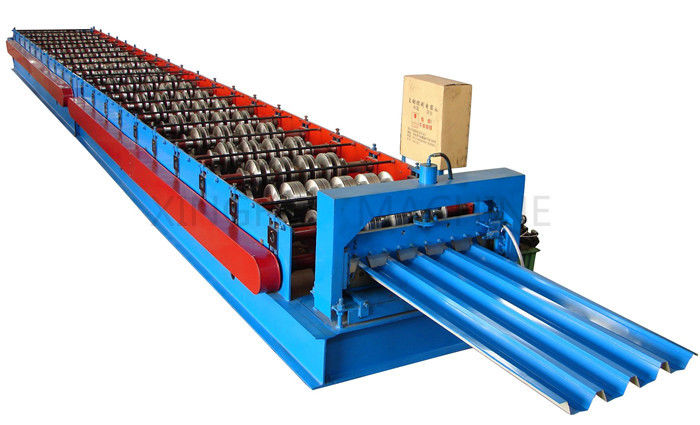

Automatic Roof Panel Roll Forming Machine , Roofing Sheet Making Machine

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	40 Working days
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored Steel / PPGI / Galvanized Steel Coil	Use:	Roof Sheet
Power:	4.0+4.0kw	Voltate:	380V,50HZ,3 Phase
High Light:	roof tile roll forming machine , metal roof roll forming machine

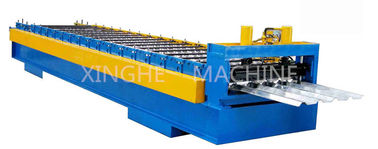

Automatic 750 Trapezoidal / IBR Roll Forming Machine, Roofing Sheet Making Machine

Working Porcess

Decoiling---Guiding---Forming---Measurin---Cuttingl---Product Finished

prepainted steel corrugated metal roofing sheet machine

Sepcifictaion

Material
Thickness	0.3-0.8mm
Feeding width	1000mm
Applicable material	GI/PPGI/AL
Manual Un-coiler
Max Capacity	3-5Ton
Features	Manual with brake
Main Forming System
Motor Power	4.0KW forming system
Roller material	45# steel , precision machined, mirror treatment, coatd with rigid chrom
Main forming shaft	Φ70mm, 45# tempering steel
Frame	300H steel plate welding
Forming station	13 stations
Transmission	by chain-and-gear
Measuring accuracy	+/- 2 mm/M
Producing speed	8-12m/min
Working procedure	decoilering--forming--moulding--cutting--product finished
Hydraulic Cutting Device
Cutting way	Post cut, stop to cutting
Cutting material	Cr12 with harded quenched and tempered, two piece of cutting blades
Motor power of Oil pump station	4.0KW
Electrical System
Control system	PLC controller(import brand), SAJ inverter
Power	380V 50Hz (as per local requirement)
Extra
Dimesion(LWH)	8500mm1300mm950mm
Weight(Ton)	2.5T
Service
After-sales Service	Engineers available to service machinery overseas
Warranty	12 month
