Product Details:
Payment & Shipping Terms:
|
| Use: | Roof Sheet | Type: | Tile Forming Machine |
|---|---|---|---|
| Raw Material: | Colored Steel / PPGI / Galvanized Steel Coil | Sheet Thickness: | 0.3-0.8mm |
| Machine Power: | 4.0+4.0kw | Machine Voltate: | 380V,50HZ,3 Phase |
| High Light: | metal roll forming machine,sheet roll forming machine |
||

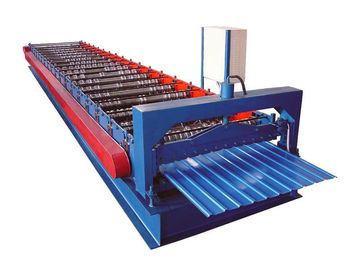

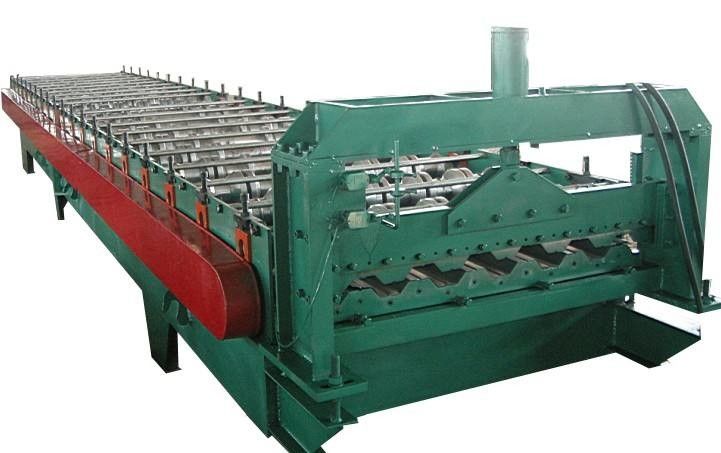

AutomaticRoofing Roll Forming Machine/Corrugated Sheet MakingMachine
| Main Frame | 300H-beam & Square Pipes (Seamless welding) |
| Additional Feeding System | 5 Groups Roller Stations |
| Rollers | 45# Forging Steel |
| PLC Control Cabinet | Delta with frequency changer |
| Punching Die | Cr12 |
| Angle/Radius | >=0.5 Meters |
| Material yeild strength | Q235 or equivalent |
| Material thickness | 0.3-0.8mm |
| Material width |
1000mm, 1220mm, 1250mm Qr according to customer's need |
| Processing precision | within 1.0mm |
| Rollers | 9 rows |
Optional components
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
3.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
