C Z Purlin Roll Forming Machine For Making Roofing Load - Bearing Plate

China C Z Purlin Roll Forming Machine For Making Roofing Load - Bearing Plate supplier

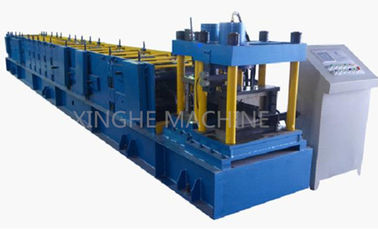

Large Image :  C Z Purlin Roll Forming Machine For Making Roofing Load - Bearing Plate

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Main body of machine is naked into the container, we can also provide plastic film if you need.
Delivery Time: 10 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI Coil / Glavanized Sheet Coil Use: Z Purlin
Voltage: 7.5KW+5.5KW Power: 380V, 50HZ,3 Phase
High Light:

cz purlin roll forming machine


c channel roll forming machine

China Manufacturer Steel Structure Building C Z Purline Roll Forming Line Metal Profile Making Machine

Product Application

Z purlin formed by Fully Automatic Z purlin roll forming machine, advantages of well compressive strength and flatness; automatic measuring, cutting and punching; high-level of automation and conveniently installation. It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

NO.    Items                                                                          Parameters                     Remark



    Thickness 2.0-3.0mm



Length Any length
    Length Tolerance ±2mm/6m
3 Working Speed 25 m/min Standard machine
4 Control System Mitsubishi/Siemens PLC& transducer Custom
5 Total Power 22 KW
6 Total Weight About 6.2T Up to final design


Components of Z section steel purlin cold roll forming machine:


No.            Name                                                                                            Unit                        Qty
1 Manual decoiler set 1
2 Main forming machine set 1
3 PLC control system set 1
4 Hydraulic pump station set 1
5 Post cut set 1
6 Electric motor set 1
7 Output table set 1


Machine parameter

Item Parameter
Material Thickness 2-3mm
Size of C purlin 80-300mm



Voltage 380V/3PH/50HZ
Main Motor 7.5kw
Hydraulic motor 5.5kw
Hydraulic pressure 10-12MPa







Flattening shafts 7 rollers, diameter: 100mm
Main forming stations 13 steps
Forming Shaft diameter 85 mm, 45# steel thermal refining
Roller Material GCR15 bearing steel quenching HRC58-60°
Main machine body 350# H steel welded
Transmission Chain and Sprocket, chain size 2 inch
Wall Plate 20mm thickness
Blade material Cr12 mould steel with quenched treatment60-62°
Punch Mould (if needed) Cr12 quenched
Forming Speed 7-10m/min for standard solution
Cutting system Length-set cutting after roll formed
Control System Delta PLC and Inverter
Manual decoiler

Max width of coiling: 1000mm

Max weight of loading: 5000kg

Output Supporter 2 Pcs Simple Supporter
Dimension of the machine 7.5m×1 m×1.5m
Weight of the machine 5.5 Ton


Our Service

A.One year guarantee for whole machine.
B.24 hours technical support by email or calling.
C.If there is any problem found of the machine, we will repair it for free in one year.



1. How many years since you have been in this field?
Our company has been producing roll forming machines for almost 20years.
We have rich experience for manufacturing and designing the machine.
2. Where is the nearest airport?
Tianjin or Beijing, both are ok. Tianjin is nearest.
From Tianjin to Cangzhou, the high speed train, it takes only 30 minutes.
From Beijing to Cangzhou, it takes only 51 minutes.
We will go to Cangzhuo railway station to pick you up, if you come to visit our factory.
3. How about your quality and price?
Our machine uses the advanced technique, we are leading in this field.
Most of other roll forming machine factories, their boss are students of our general manager. We always leads first in this field.
The quality is among the highest.But the price is not high, it is low. Because our rich experience help us to do the highest quality machine but with lowest cost. Then our price is not high.


Machine shows

C Z Purlin Roll Forming Machine For Making Roofing Load - Bearing Plate
