Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+4.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | Dimension: | 6500*1000*1200mm |
| Machine Weight: | 3.0Tons | Warrenty: | 12 Months Warrenty And Long-life After-sale Service |
| After-sales Service: | Engineers Available To Service Machinery | Middle Plate Thickness: | 14mm |
| Control System:: | PLC(imported Brand) | Roller Material:: | 45#steel Chrome Plated |
| Shaft Material:: | 5mm Chrome Coated | PLC Automatic Zinc Roofing Roll Forming Machine/Corrugated Roof Sheet Making Machine/ Roof Panel For: | 75mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | ||
| High Light: | steel stud roll forming machine,gutter roll forming machine |
||

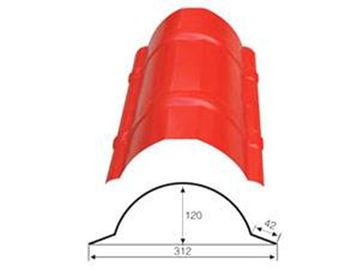

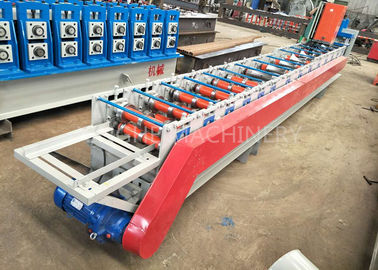

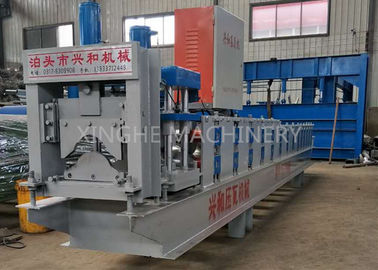

The ridge cap roll forming machine is a large roof tile equipment special floor plate equipment imported computer motherboard and relay, frequency converter, the production efficiency can reach 5-8m/min, and high rate of finished products. Roofing material is light, beautiful, environmental protection, waterproof, fireproof, sound insulation, etc..
| ridge cap roll forming machineTechnical parameters: | ||
| 1 | Cutting&Hydraulic type | Double guide pillar |
| 2 | Hydraulic motor power | 4kw,4kw |
| 3 | Hydraulic Pressure | 10-12MPa |
| 4 | Voltage | 380V /3phase/ 50 HZ (or as your requirement) |
| 5 | Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
| 6 | Control System | Panasonic /Siemens / Schneider / Delta PLC |
| 7 | Length measurement | Encoder |
| 8 | Main Frame | 300mm/350mm H-Beam or 350mm |
| 9 | Backboard Thickness | 17mm/200mm |
| 10 | Chain Size | 1inch/2inch |
| 11 | Feeding Material | Better as your drawing or from our designer |
| 12 | Feeding Thickness | 0.18mm-1.0mm |
| 13 | Effective width | Better as your drawing or from our designer |
| 14 | Productivity | 5-8/min |
| 15 | Roll Station | 13ows& 14(according to different design) |
| 16 | Roller Diameter | 70mm/75mm(depend on different design) |
| 17 | Roller material | 45# steel |
| 18 | Cutter material | Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees |
| 19 | Total Weight | 2t-12t |
| 20 | Package of machine | Waterproofing membrane, standard export packing |
| 21 | ridge cap roll forming machine of the Components |
Manual decoiler-------------------1 set(5t) Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Hydraulic Station------------------1 set Supporter Table-------------------1 set Coil Strip Leveler------------------1 set |
| 23 | ridge cap roll forming machine machine technical parameters can be changed, according to customer's need. | |
