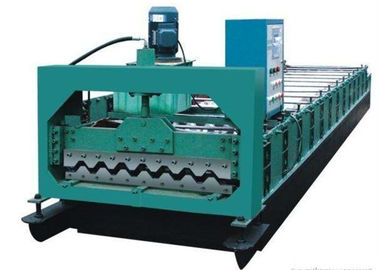

Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles

China Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles supplier
Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles supplier Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles supplier

Large Image :  Colored Steel Roof Panel Roll Forming Machine Producing 750mm Width Tiles

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 40 Working days
Payment Terms: L/C, T/T
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Type: Tile Forming Machine
Tile Type: Colored Steel / PPGI / Galvanized Steel Coil Use: Roof Sheet
Power: 4.0+4.0kw Voltate: 380V,50HZ,3 Phase
High Light:

roofing sheet roll forming machine


metal roof roll forming machine

Colored Steel 750 Trapezoidal Roof Panel Roll Forming Machine


Roll forming machine working flow:

Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production


Machine parameter:

Item Parameter



Thickness 0.3-0.8mm
Wide 1000mm/1200mm/1250mm
Yield Strength 230~550MPA

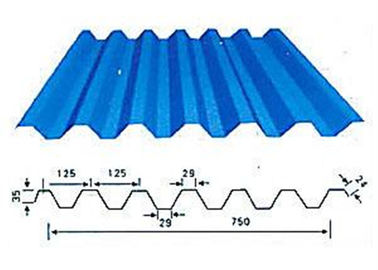

Profile 750 profile, accept customization
Effective width 750mm
Length Any length



Voltage 380V/3PH/50HZ, accept customization
Main Motor 4kw
Hydraulic motor 4kw
Hydraulic pressure 10-12MPa



Forming steps number 13 steps
Shaft Material 45 # steel tempered,Φ75mm
Roller Material 45 # steel chrome coated
Main machine body 350# H steel welded
Transmission Chain and Sprocket, chain size 1 inch
Wall Plate 16mm thickness
Blade material Cr12 mould steel with quenched treatment 60-62°
Forming Speed 8-12m/min for standard solution
Cutting system Length-set cutting after roll formed
Control System Delta PLC and Inverter
Manual decoiler

Max width of coiling: 1000~1450mm

Max weight of loading: 5000kg

Output Supporter 2 Pcs Simple Supporter
Dimension of the machine 8m×1.5mm×1.2m
Weight of the machine 4.5 ton



1) Q: Do you have after sales support?

A: Yes, we supply technical support for all life and we also have technicians available across the world.


2) Q: How do your machines compare with other big companies in this market?

A: Our machines don’t have glamorous appearance, but they are strong and durable, working life is more than 10 years.


3) Q: How does your factory ensure the good quality?
A: Quality is our business life. Except the quality materials which the eye could see, the most important quality is the final products beautiful and have accurate datas. We will draw the drawing base on customers’ profile and requirement, and after processing the rollers, we will check and test the rollers and machine, to ensure the final products are the same with customers’ profiles. Once we find inacceptable tolerance, we must solve it and never allow it to exist in customers’ workshop.


4) Q: Do you sell standard machines or accept customization?

A: We sell both standard machines and customized machines. In fact, most of customers have their own requirements, so most machines are customized.


5) Q: Can you make the machine according to my design or proto type?
A: Yes. You only need to supply your profile or design picture, we will produce the machines according to your basic request.


6)Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers could send the technical people to our factory to check the quality.

2. We can send the technicians to the buyer`s factory for the installation and training of the machine.

3. Good aftersales-service, its free of charge during the warranty period.


7) Q:What can you do if the machine broken?

A:Our machine's warranty period is 13months,if the broken parts can't repair,we can send the new parts replace the broken parts freely. If after warranty period, we will supply technical support to solve the problems, and we supply the technical support for the whole life of the equipment.


8) Q:How to visit our company:

A:Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you at the station.


9) Q:Why your price is higher?

A:For the same profile, with different technical parameters, the machines will completely different. We ensure to arrange good quality materials and components, precise drawings, strict quality controlling, to ensure the good final quality, to keep the machine run well in customers’ workshop, with no problem, to help our customers gain more business value.
