Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Steel Frame & Purlin Machine |
---|---|---|---|
Tile Type: | Colored Steel / Galvanized Steel Coil | Power: | 7.5kw |
Voltage: | 380V 60HZ Or At Your Requirement | Warrenty: | 12 Months |
High Light: | cz purlin roll forming machine,c channel roll forming machine |
C purlin Roll Forming Machine,steel C purlin forming machine,Steel Formig machine
C purlin
Machine parameter
Uncoiler (manual/automatic) | Weight Capacity | 6T |
Inner Diameter | 460-520mm | |
Outside Diameter | 1400mm | |
Coil width | Max 600mm | |
Feeding and straightening device |
Pinch rollers | one pair, up and down |
Straightening rollers | up three, down four | |
Diameter of rollers | 75mm | |
Roll Former | Frame type | single station |
Forming Roller stand | about 14 Groups | |
Shaft material | First grade 45# steel, | |
Shaft diameter | 75mm | |
Roller material | GCr15 | |
Drive Type | Chain of transmission | |
Motor |
15KW reducer with frequency control |
|
Roll stand type |
split type, two sides forming separately |
|
Size changing time | 15 min | |
Automatic size changed by slide screw and angle gear which guarantee the complete synchronization and the material thickness is adjusted by eccentric distance of passive rollers. | ||
Punching | Type | Hydraulic |
Mould material | Cr12 | |
Holes distance | Can be adjusted | |
Cutting 1 Hydraulic cutter |
Type | After-cutting, hydraulic |
Material of mould | Cr12 | |
Cutting tolerance | 10M+/- 2.0 mm | |
Cutting 2 Fly saw |
option | |
PLC cabinet | PLC | PANASONIC |
Length Controller | Encoder | |
Operation | Touch Screen | |
Transducer | Mitsubishi | |
Hydraulic station | Power | 7.5 KW |
Hydraulic pressure | 11 Mpa | |
Runout Table | Non-power type |
|

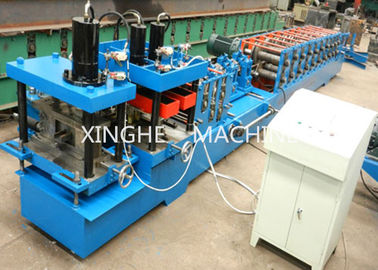

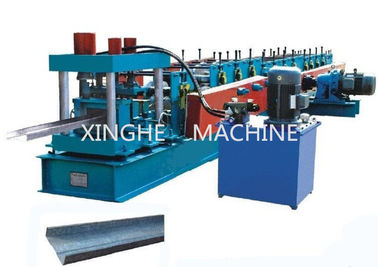

Machine show
1. Standard pack: main machine is naked, and the computer control system is packed by wooden box.
2. or Packing according to customers' needs
3. We have professional technician for loading Guaranteed the goods load into container without any damage.
4. Transportation : Machines need one 20 or 40 feet container.
Warranty:
12 months, during the time any parts damaged because of quality problem will be changed for free.
Delivery Time:
Within 45 working days after received the prepaid. Some in stock ones can be delivered at any time.
Payment Terms:
30% deposit is paid by T/T before the production, the rest paid after inspection confirmation before loading.
Install and Training
1) If buyers come and inspect our factory, the training about the install and operate wiil be provided face to face.
2) if not, the instruction manual and video will be provided to show how to install and operate.
After-sale Service:
We provide a 12-hour online service for our customers.
a )When technicist debug the machines at the buyer's place, the buyer should pay the expense of accommodation and traffic fee for the technicist, and pay the technicist $100 per day.
b) If the buyer sends people to take the training about the operation given by the seller, during the training time, the seller will pay the expense of accommodation, and traffic fee for the buyer's people.
1. What's your MOQ?
1set.
2. When to deliver the machine?
We deliver the machine within 45 days after receiving the prepared. Some in stock ones can be delivered an any time.
3. Are you a foreign trade company or a factory?
We are a factory, specialized in producing all kinds of roll forming machines.
4. How can I visit you factory?
a. Fly to Beijing Airport: By high speed train from Beijing Nan to Cangzhou Xi (about 1 hour), then we can pick you up;
b. Fly to Shanghai Airport: By high speed train from Shanghai Hongqiao to Cangzhou Xi (about 4.5 hours), then we can pick you up.
5. How can I trust you?
As for the quality, ISO&CE certifications have been achieved. For our innovations on the machines, we also get the Certificate of Utility Model Patent from State Intellectual Property office of the People's Republic of China. And, we are Trade Assurance supplier, our customers are covered for on-time shipment, pre-shipment product quality, most importantly, alibaba.com will refund you the covered amount when we supplier does not meet the requirements in the contract, so trade with confidence.
6. What should I provide if I'd love to customize my machine?
To customize machine, you should know:
1) Profile drawing
2) Raw material: Feeding width, Effective width and the material of the raw steel
3) Voltage: Designed as your requirements.
4) Configuration requirement: Hydraulic or manual decoiler/ stacker.
