Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+3.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | 12 Months |
| High Light: | roof tile roll forming machine,metal roof roll forming machine |
||

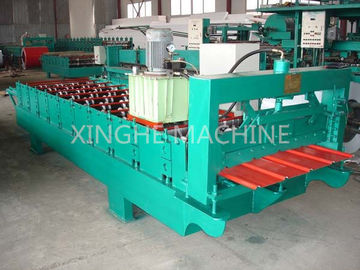

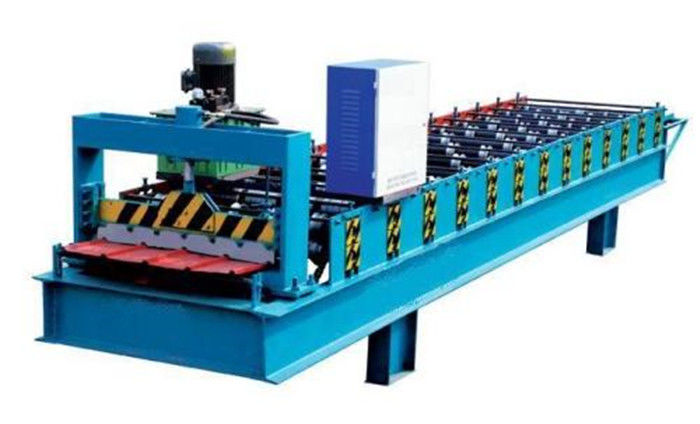

Color Steel Glalvanized Metal Aluminum Glazed Trapezoidal Tile Sheet Roof Wall Panel Double Layer Roll Forming Machine
How to buy customized machines?
Roof roll forming machines are customized machines, please send us the profiles / drawings, and your requirements, then we will make the machines according to your need. If you need we recommend the popular profiles, please don't hesitate to inform us.
Working flow:
Decoiling → Feeding & Guiding → Roll forming → Cutting → Output the finished production
Technical specifications:
| Item | Parameter | |
|
Suitable Material |
Type | PPGI/GI/PPGL |
| Thickness | 0.3-0.8mm | |
| Width |
914mm/1000mm/1200mm/1250mm/1450mm Any input width can be special designed as customer's requirment |
|
| Yield Strength | 230~550MPA | |
|
Product Specs |
Profile | Customized profile |
| Effective width | Base on customized profile | |
| Length | Any length | |
|
Power Specs |
Voltage | 380V/3PH/50HZ, accept customization |
| Main Motor | 4.0kw | |
| Hydraulic motor | 3.0kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Forming steps number | 11~17 steps |
| Shaft Material | 45 # steel tempered,Φ70~90mm | |
| Roller Material | 45 # steel chrome coated | |
| Main machine body | 350# H steel welded | |
| Transmission | Chain and Sprocket, chain size 1 inch | |
| Wall Plate | 16mm thickness | |
| Blade material | Cr12 mould steel with quenched treatment 60-62° | |
| Forming Speed | 8-12m/min for standard solution | |
| Cutting system | Length-set cutting after roll formed | |
| Control System | Delta PLC and Inverter | |
| Manual decoiler |
Max width of coiling: 1000~1450mm Max weight of loading: 5000kg |
|
| Output Supporter | 2 Pcs Simple Supporter | |
| Dimension of the machine | 6m~9m×1.5mm×1.6m | |
| Weight of the machine | 3.0-5.0 ton | |
