Product Details:
Payment & Shipping Terms:
|
| Type: | Tile Forming Machine | Use: | Floor |
|---|---|---|---|
| Model: | XH76-344-688 | Power: | 15.0KW |
| Machine Sizes: | About 16*1.2*1.0m(L*W*H) | After-sale Service: | Engineers Available To Adjustment Abroad |
| Highlight: | sheet metal forming equipment,tile roll forming machine |
||
Automatic Metal Deck Floor Deck Steel Roll Forming Machine Galvanized Floor Decking Roll Forming

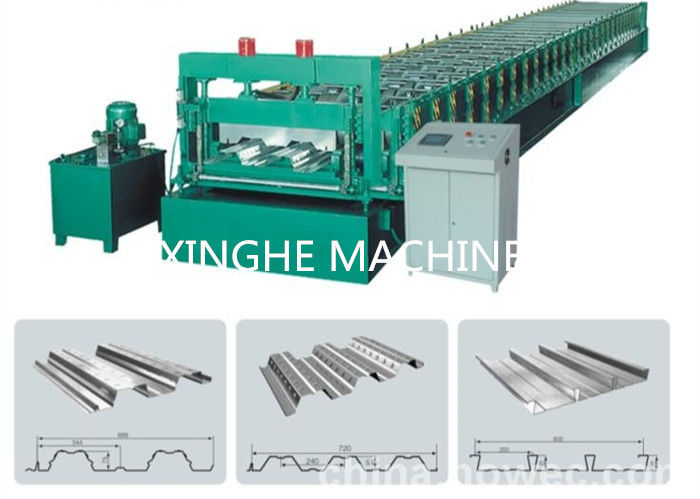

Tile sizes

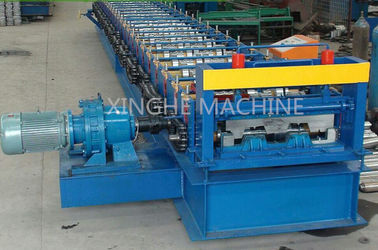

Machine picture
Machine paremeter
| No | 688 Floor Deck Roll Forming Machine | |
| 1 | Dimensions (L*W*H) | 14500*1350*1300mm |
| 2 | Total power |
Motor power-18.5kw Hydraulic power-4kw |
| 3 | Rows of rollers | 24 rows |
| 4 | Productivity | 10-12m/min |
| 5 | Diameter of shaft | 95mm |
| 6 | Voltage | 380V 50hz 3phases |
| 7 | Weight | 13.5t |
| 8 | Machine body | 450mm H beam |
| 9 | Middle plate | 22mm |
| 10 | Material of the rollers | Bearing steel with quenching treatment |
| 11 | Material of the shafts | 45# steel |
| 12 | Material of the cutting blade | Cr12 with quenching treatment |
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5days if goods are in stock. 25-30 working days if goods not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
