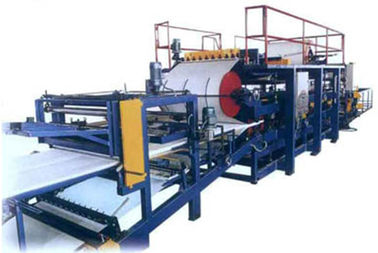

China Manufacturing Machines Eps / Rock Wool Sandwich Wall Panel Production Line / Machine
Product Introduction
With reasonable structure, the machine is easy to operate with completed functions.
The plate is formed through such processes as feeding, profiling , dispensing, heating, trimming, gouging and cutting.
The machine adopts precise low-speed metering pump, frequency control (or stepless speed variation) with computer control and dose is accurate.
It can produce flat plate and corrugated sheet of many specifications and models, including the sandwich panel with thickness of 40-300mm and width of 950-1200mm, and corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.
This machine applies to color steel plate, aluminum plate, stainless steel plate and so on.
Main parameter :
A. Uncoiler
| Type of uncoiler: | Manual |
| Material of coil: | color coating coil |
| Thickness of sheet: | 0.3~0.8mm |
| Width of coil: | 1250mm |
| Weight of coil: | ≤ 5 t |
| Inside diameter of coil: | 480~520mm |
B. Into Shearing Device
| Type of Shearing: | Electrical Shearing |
| Driven Power: | 0.75 kwc. |
C. Forming Machine Itself
| Design of profile: | see list and drawings attached |
| Type of forming: | single layer forming |
| Stands of forming: | 16 stands |
| Roller diameter: | ¢80mm |
| Material of roller: | 45 steel heat treatment |
| Thickness of chromic plating of roller surface: | 0.05~0.06mm |
| Speed of forming: | 5~6.0m/min synchronies with panel machine |
| Type of synchronies: | electrical synchronies |
| Driven power: | 3.0 kw |
| Installation instruction: | two parts |
| Size of forming machine: | 11000×2200×2200mm |
| Weight of forming machine: | ~6 t |
D. Control Panel
| Electrical Voltage: | 380V/3Ph/50Hz |
| Type of controlling: | PLC (Mitsubishi Japan) |
| Touch screen: | Mt506 (Taiwan) |
| Speed measure device: | OMRoM (Japan) |
| Parts of electrical control system: | Simenz |
| Transducer: | (Mitsubishi Japan)/0.4KW (Made in China) |
| Model: | SPC Machine |
Drawing of Panel:

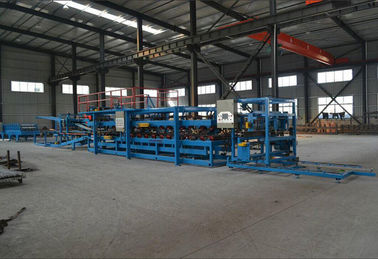

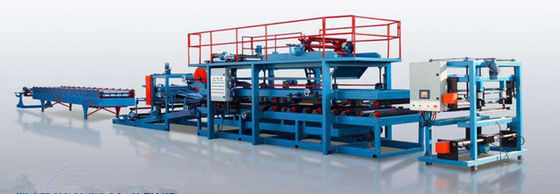

Machine shows
