Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Production: | 0-15m/min | Power: | 5.5+4KW |
| Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | Engineers Available To Service |
| Highlight: | storage rack roll forming machine,cnc roll forming machine |
||
Drain pipe metal round downspout roll forming machine/ Water down pipe elbow cold forming line

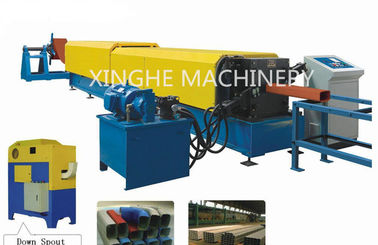

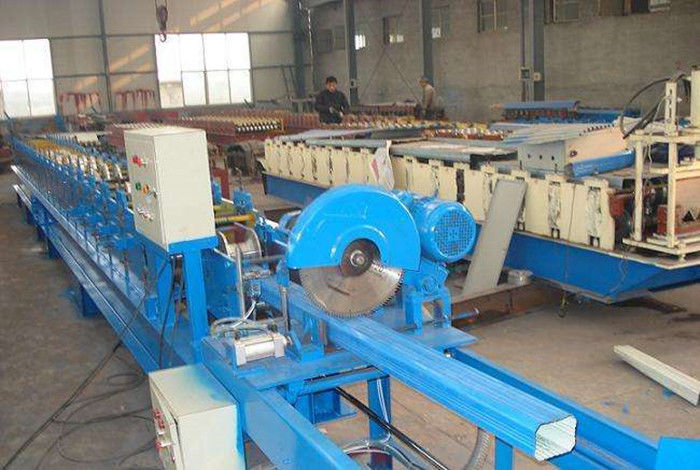

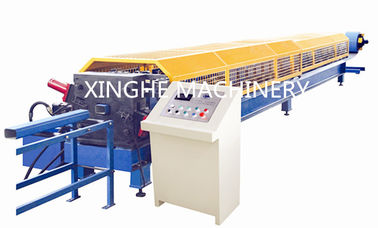

Machine pictures
Techical description
| Material thickness | 0.4-0.8mm |
| Roll speed | 8-12m/min |
| Roll steps | 14 |
| Main motor power | 5.5 KW |
| Shaft diameter | 80mm |
| Material of roller | 45# steel polished and coated with chrome HRC55-60° |
| Material of bearing | high grade No.45 steel after treatment |
| Material thickness | 0.3-0.8mm |
| Mode of cutting | Hydraulic cutting or flying saw |
| Material of scissors | Cr12 steel after treatment |
| Hydraulic station power | 4.0 Kw |
| Control system | PLC Frequency Control System with touch screen |
| Computer cabinet size | 700mm*1000mm*300m |
Machine components:
| Decoiler | 1set |
| Guiding Equipment | 1set |
| Roll Forming Equipment | 1set |
| Post Cut Equipment | 1set |
| Hydraulic Station | 1set |
| PLC Control System | 1set |
| Supporter Table | 1set |
After-sale service
We will offer technical support for all the roll forming machines the whole life. 2 years free spare parts replacement and maintaince. Our international technicians can be reach your workshop at the first time if your machines has problem.
FAQ
Training and Installation
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
