Product Details:
Payment & Shipping Terms:
|
Condition: | New | Type: | Tile Forming Machine |
---|---|---|---|
Production: | 0-15m/min | Power: | 11 Kw+5.5kw |
Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | Engineers Available To Service |
High Light: | storage rack roll forming machine,cnc roll forming machine |

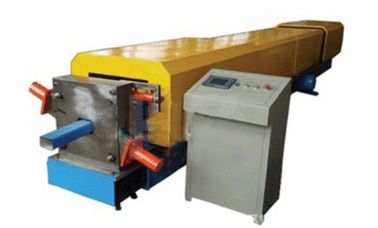

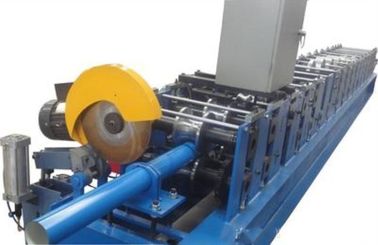

Downpipe / Gutter Roll Forming Machine,New Style Forming Device For Downpipe and Bender, Downpipe Roll Forming Machine
1.Main Accessories of the roll forming machine
1 | Decoiler(manual or hydraulic for options) | 1 set |
2 | Feeding device | 1 set |
3 | Main Forming Machine | 1 set |
4 | Hydraulic cutting device | 1 set |
5 | Hydraulic Station | 1 set |
6 | PLC computer control system | 1 set |
7 | 4m Run Out Table | 1 set |
2.Main Technicial Parameter of the roll forming machine
No. | main parameter of gutter roll forming machine | ||
1 | Suitable to process | Color steel plate | |
2 | Width of the plate | 200-600mm | |
3 | Rollers | 24rows | |
4 | Dimensions | 8.6*0.8*1.2m | |
5 | Power | 4+3kw | |
6 | Thickness of the plate | 0.3-0.8mm | |
7 | Productivity | 8-12m/min | |
8 | Diameter of the roller | 5tons | |
9 | Weight | About 5 T | |
10 | Voltage | 380V 50Hz 3phases | |
11 | Rolling material | Carbon Steel 45# | |
12 | Material of the cutting plate | Cr12 | |
13 | Processing precision | Within 1.00mm | |
14 | Control system | PLC control | |
15 | Side panel of machine | 14mm | |
16 | Main structure of the machine | 300 H steel | |
17 | Weight | About 4.5 T |
