Galvanized Sheet Metal Roll Forming Machine , Double Layer Roll Forming Machine

Large Image : Galvanized Sheet Metal Roll Forming Machine , Double Layer Roll Forming Machine

Product Details:

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	40 Working days
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored Steel / PPGI / Galvanized Steel Coil	Use:	Roof Sheet
Power:	4.0+4.0kw	Voltate:	380V,50HZ,3 Phase
High Light:	glazed tile roll forming machine , corrugated roll forming machine

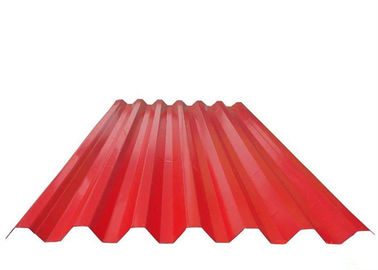

Automatic 750 Zinc Metal Steel Sheet Wave Roof Panel Rolling Machine Price

Machine parameter

o	Item		Parameter	Note
1	Suitable Material	Type	steel roof cold roll forming machine	Customized Specs Acceptable,double layer roll forming machine
		Coil width	1000mm
		Thickness	0.3-0.7mm
		Yield Strength	235MPA
2	Product Specs	Cover width	Customized Profile
2	Product Specs	Length	Any length
3	Power Specs	voltage	380V/3PH/50HZ	Up to Practical Profile
		Main Motor	4.0KW
		Hydraulic	4.0KW
4	Machine Specs	Transmission	Chain and Sprocket	Gearbox and Cardan Acceptable
		Structure	Column Block Or Wall Plate
		Shafter	No.45 steel tempered
		Rollers	No.45 steel chrome coated	Cr12 or other acceptable
		Cutting Blade	Cr12 quenched
		Press Mould	Cr12 quenched
		Punch Mould	Cr12 quenched
5	Working Capacity	Forming Speed	15-20m/min for standard solution	Higher Speed Solution Available
5	Working Capacity	Working Speed	Up to Length-set Cutting	Higher Speed Solution Available
6	Hydraulic Cantilever Decoiler (Optional)	Type	Hydraulic
		Max. Capacity	5 T/10T/15T
		Suitable coil OD	1200mm
		Suitable coil ID	508/610mm
		Max Coil width	1250mm
7	Forming Stand		8-48	Up to Practical Profile
8	Forming Shaft Diameter		55-120mm	Up to Practical Profile
9	Type of Cutting		Length-set cutting after roll formed,CR12 mould steel	Pre-cutting acceptable
10	Control System		Mitsubishi PLC and Inverter
11	Output Supporter		2 Pcs Simple Supporter	Auto Stacker Optional

Please kindly check the package and our service :

1.Insalations and training

a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.

c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

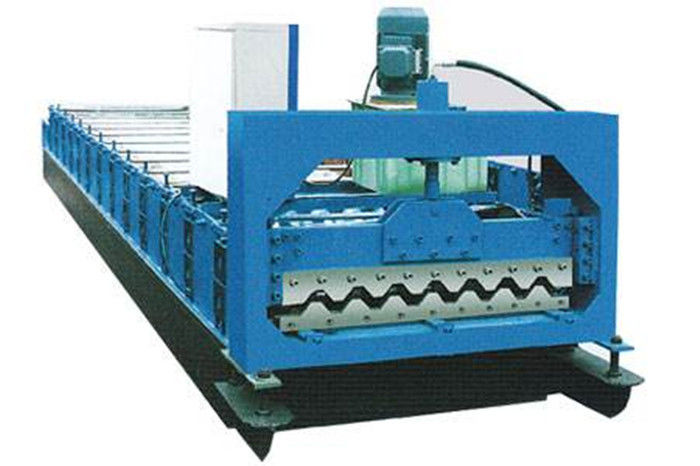

Machine shows
