Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+3.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | 12 Months |
| High Light: | steel stud roll forming machine,gutter roll forming machine |
||
Botou City Classic Galvanized Aluminum Colored Glaze Steel Metal Roof Ridge Cap Tile Cold Roll Forming Making

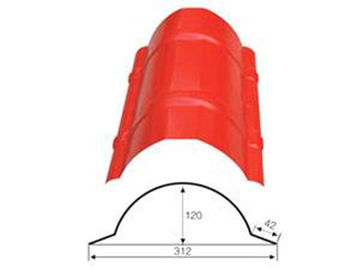

312 Ridge cap drawing
Working flow
Decoiler---Feeding&Guiding---Roll Forming Machine---Hydraulic Pressing&Cutting---Receiving Table
Machine parameter
| No. | ||
| 1 | Suitable to process | GI/PPGI/AL |
| 2 | Control system | PLC control |
| 3 | Productivity | 12m/min |
| 4 | Width of the raw material | customized |
| 5 | Thickness of the plate | 0.3-0.8mm |
| 6 | Rollers | 14rows |
| 7 | Material of the rollers | 45# steel plated with chrome |
| 8 | Diameter of the rollers | Φ80mm |
| 9 | Roller chrome thickness | 0.05mm |
| 10 | Material of the cutting blade | Cr12 with quenching treatment |
| 11 | Dimension | 8000*700*750 |
| 12 | Weight | About 3.4t |
| 13 | Voltage | 380V 50Hz 3Phases |
14 |
Power |
main motor power: 4kw hydraulic pump power: 4kw |
Component
| NO. | Item | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main roll forming machine | set | 1 |
| 3 | PLC control box | set | 1 |
| 4 | Supporter table | set | 1 |

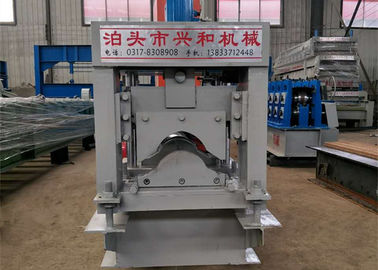

Machine show
Warranty:
12 months, during which all parts damaged because of quality problem will be changed for free.
Delivery Time:
Within 30-45 days after receiving prepaid. Some machines in stock, can be delivered at any time.
Payment Terms:
30% deposit is paid before production, the balance paid after inspection confirmation before shipment.
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world
We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair
we can send the new parts replace the broken parts free,but you need pay the express cost yourself if after warranty period
we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil
