Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Use: | Metal Roof Shee |
| Voltage: | 380V 60HZ Or At Your Requirement | Power: | 3.0+3.0kw |
| High Light: | metal roll forming machine,sheet roll forming machine |
||

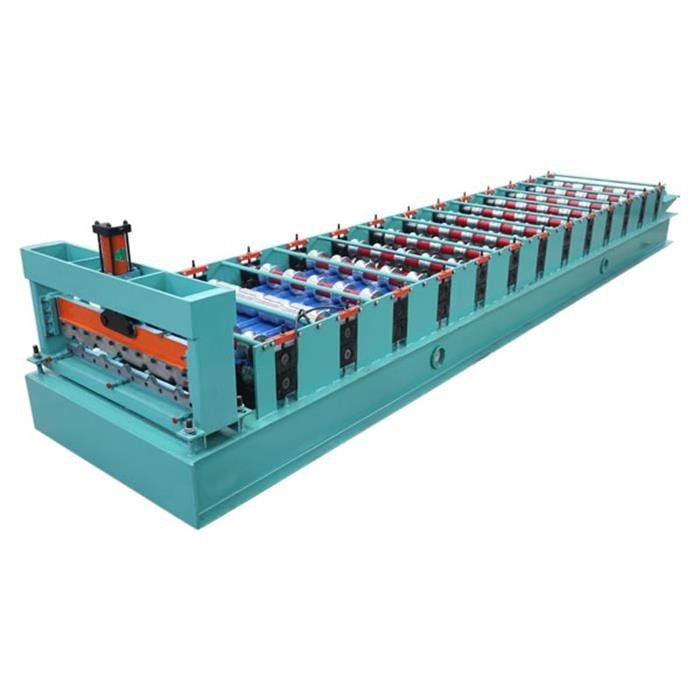

High Capacity Roof Plate Rolling Forming Machine
Introduction of galvanized roofing sheet roll forming machine
This high speed step tile roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel. The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for steel structure.
Process flow:
Roll forming machine consist of uncoiler ,coiler sheet guiding device,main roll forming system ,cutting device, Hydraulic station ,PLC control system and support table.
Product Application
1.Coil Thickness:0.3-0.8m
2.Speed:6-12m/min
3.Hydraulic Cutting
4.Full automatic working, easy operation
5.One machine can produce normal roofing sheet and also can produce glazed tile .
6.Good after-sale service
7.ISO,BV,CE
Machine parameter:
| No | M ain parameter of the roll forming machine | |
| 1 | Thickness of middle plate | 14mm |
| 2 | Step of forming roller | 11steps |
| 3 | Material of roller | 45# Steel |
| 4 | Bearing | 6210 |
| 5 | Line speed | About 0-9 m/min |
| 6 | Chain | 25.4 mm (high grade) |
| 7 | Power of main motor | 3KW |
| 8 | Voltage | 380v/ 50Hz/ 3pha |
| 9 | Accuracy of cutting | +/- 2mm |
The Warranty
1. With one year guarantee, and the good after-sale service. We can arrange our worker to your country for the installation or we can record the whole process of the installation for your reference.
2. As per your special requirements which are also welcome to discuss.
Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L.
2. L/C is also acceptable.
3. As per your special requirements which are also welcome to discuss.
Reasons for Choosing Us:
1. More than 80 workers.
2. With the occupying area of 8000 square meters.
3. Competitive price and high quality.
4. Near to Tianjin port.
5. ISO9001 certification.
6. 12 months free warranty.
Welcome to inquiry, if you may have any interest!
