Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System

Large Image : Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System

Product Details:

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001
Model Number:	Shutter door machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Main body of machine is naked into the container, we can also provide plastic film if you need.
Delivery Time:	30 Working days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Use:	Tile Forming Machine
Tile Type:	Colored Steel	Production:	8-12 M/min
Power:	4 + 4 Kw	Voltage:	380 V, 50 Hz, 3 Phase
Demension:	4400mm1200mm1100mm (LWH)	Weight:	About 2.5t
After-sale Service:	Engineers Available To Service	Machine Color:	Can Paint As Clients' Requireme
High Light:	door frame roll forming machine , roller shutter door roll forming machine

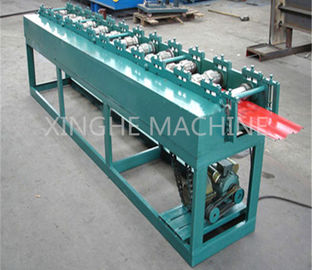

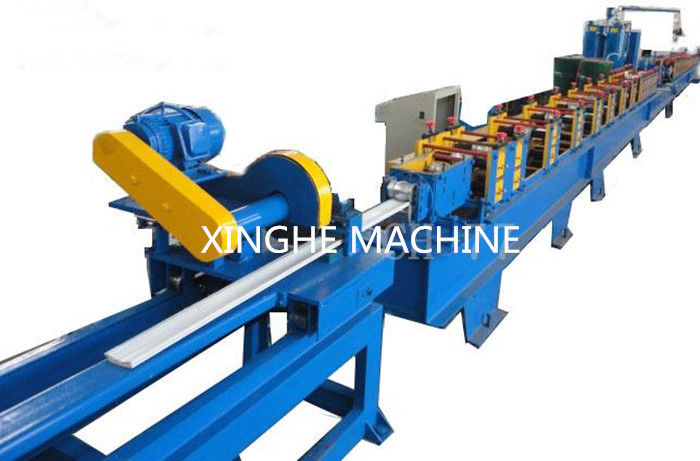

Machine picutes

Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System

Equipment technical parameters

Molding host	Model	Shutters slat roll former
	Forming size	4500mm1500mm1300mm
	weight	2.5 T
	Host big frame structure	Frame welded
	Roll station	14 row
	Axial material	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	4 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	25mm

Hydraulic shearing

Material of blade	Cr12,heat treatment 60-62HRC
Shearing system	shutters slat forming machine is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4.0kw Hydraulic oil :40#

Material of blade

Cr12,heat treatment 60-62HRC

Shearing system

shutters slat forming machine is controlled by gear wheel oil pump. After

filling the hydraulic oil into the hydraulic oil tank,

the pumps drive the cutter machine to begin the

cutting job.

The system includes a set of hydraulic tank, a

set of hydraulic oil pump, two hydraulic pipes.

And two sets of electromagnetism valves.

Power of the oil pump: 4.0kw

Hydraulic oil :40#

Electrical system

Main computer control cabinet	shutters slat roll former adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computer mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 1.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. Transducer brand is EURA. The seller will provide Chinese and English language screen.

Main computer

control cabinet

shutters slat roll former adopts industrial computer to control. The target piece’s

length is adjustable and digit of it can be adjusted. Computer

mode has two modes: automatic and manual one. The system

is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer

for the electronic machines and kits of every part.

Transducer brand is EURA.

The seller will provide Chinese and English language screen.

Shutter door sizes for choice
