Product Details:
Payment & Shipping Terms:
|
| Type: | Tile Forming Machine | Use: | Floor |
|---|---|---|---|
| Model: | XH76-344-688 | Power: | 18.5KW |
| Machine Sizes: | About 16*1.2*1.0m(L*W*H) | After-sale Service: | Engineers Available To Adjustment Abroad |
| High Light: | floor tiles making machine,sheet metal forming equipment |
||

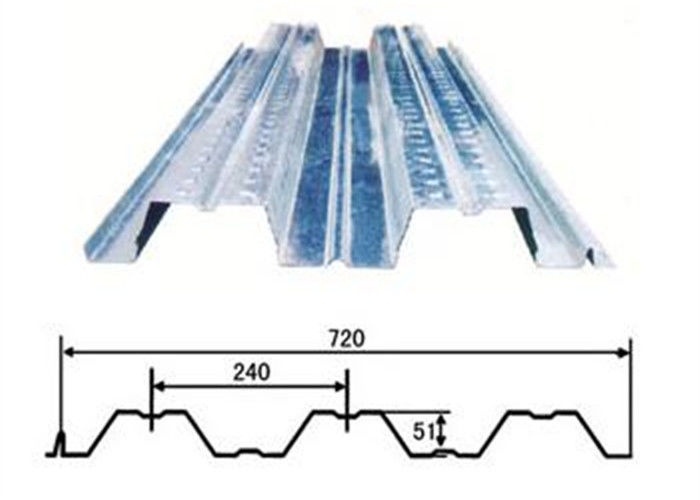

720 Shaped High Strength Bearing Steel Structure Floor Deck Cold Roll Forming Machine
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Specification of the raw material
| No | ||
| 1 | Suitable material | pre-painted coil, galvanized coil, |
| 2 |
Width of the raw material/ feeding width |
1000mm |
| 3 | cover width/ effective width | 720mm |
| 4 | Thickness | 0.5-1.2mm |
Machine paremeter
| No | 688 Floor Deck Roll Forming Machine | |
| 1 | Dimensions (L*W*H) | 14500*1350*1300mm |
| 2 | Total power |
Motor power-18.5kw Hydraulic power-4kw |
| 3 | Rows of rollers | 23 rows |
| 4 | Productivity | 10-12m/min |
| 5 | Diameter of shaft | 95mm |
| 6 | Voltage | 380V 50hz 3phases |
| 7 | Weight | 13.5t |
| 8 | Machine body | 450mm H beam |
| 9 | Middle plate | 22mm |
| 10 | Material of the rollers | Bearing steel with quenching treatment |
| 11 | Material of the shafts | 45# steel |
| 12 | Material of the cutting blade | Cr12 with quenching treatment |
Service
We have R&D centers and innovative designing teams for different kinds of production lines.
We have independent QC departments both in the company and factories which strictly control the quality of each process to enable our production lines to reach Chinese National Standards, even International Standards.
Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.
After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.
After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions,you can call me mobile phone at any times:0086-13582734807
3. How about your quality and price?
Our machine uses the advanced technique, we are leading in this field.Most of other roll forming machine factories, their boss are students of our general manager. We always leads first in this field. The quality is among the highest.But the price is not high, it is low. Because our rich experience help us to do the highest quality machine but with lowest cost.

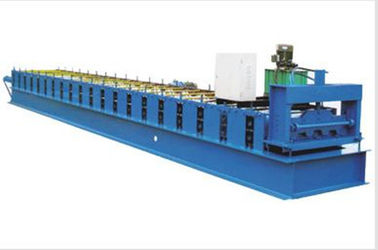

Machine shows
