Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Production Capacity: | 10-12m/min | Place Of Origin: | Botou,Hebei Province |
| Power(W): | 3+3kw | Voltage: | 380v,50hz,3 Phrases |
| Dimension(L*W*D): | 7400*1200*1500mm | Weight: | 3.0T |
| Certification: | CE,ISO,TUV,BV | Warranty: | One Year Guarantee |
| After-sales Service: | Engineers Available To Service | Machine Color:: | Any Color As You Like |
| Control System: | Automatic PLC Control | ODM: | Available |
| High Light: | metal roll forming machine,sheet roll forming machine |
||

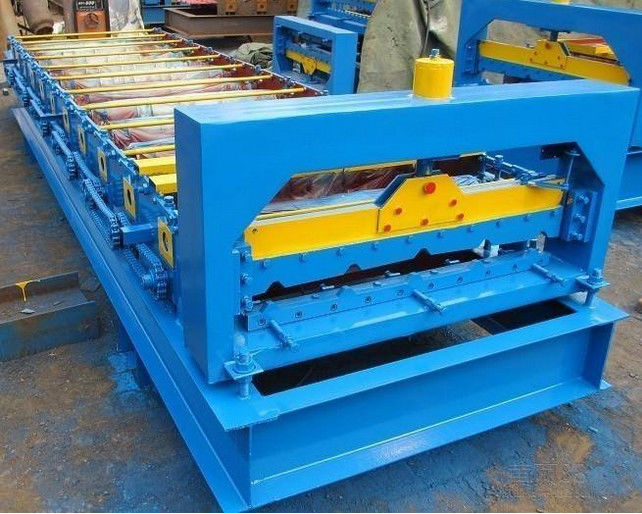

Corrugated Roll Forming Machine Iron Roof Making Machine Panels Machine
Product Description
Widely Use
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.
The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Compont
|
Item |
Name |
Qty
|
|
1
|
Manual Decoiler
|
1
|
|
2
|
Feeding platform with hand cutting system
|
1
|
|
3
|
Main forming system
|
1
|
|
4
|
Hydraulic cutting system
|
1
|
|
5
|
Hydraulic pump station
|
1
|
|
6
|
Electrical motor
|
1
|
|
7
|
PLC control system
|
1
|
|
8
|
Touch screen operation
|
1
|
|
9
|
Finished products receive table
|
1
|
|
10
|
Safety shield(optional)
|
1
|
Specification
We can design according to your require,please send me your profile drawing.
|
Name
|
Galvanized Metal Roofing Sheet Panel Roller Former
|
|
Material Spec
|
color steel sheet
|
|
Input Width
|
1000mm
|
|
Coil thickness
|
0.3-0.8mm
|
|
Forming speed
|
8-15m/min
|
|
Main power
|
4kw
|
|
Hydraulic power
|
4kw
|
|
Roll stand
|
16rows
|
|
Roller material
|
high grade No.45 forged steel, with 0.05mm plated coating
|
|
Shaft material
|
high grade No.45 forged steel,diameter 75mm
|
|
Size length*width*high
|
6.5m*1.2m*1.2m
|
|
Total Weight
|
3.5T
|
|
Voltage
|
380 volt or as you need
|
