Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 4.0+4.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | Dimension: | 7600*1300*1300mm |
| Machine Weight: | 3.5Tons | Warrenty: | 12 Months Warrenty And Long-life After-sale Service |
| After-sales Service: | Engineers Available To Service Machinery | Middle Plate Thickness: | 16mm |
| Control System:: | PLC(imported Brand) | Roller Material:: | 45#steel Chrome Plated |
| Shaft Material:: | 5mm Chrome Coated | PLC Automatic Zinc Roofing Roll Forming Machine/Corrugated Roof Sheet Making Machine/ Roof Panel For: | 75mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | ||
| High Light: | sheet metal roll forming machine,glazed tile roll forming machine |
||
Metal Roofing Sheet Bending Machine Roof Panel Forming Machine Roofing Roller Machine,Roll Forming Machine
Processing flow
Manual decoiler→→ Feeding material into machine →Roll forming machine →Measure length→Hydraulic cutting →Finished Products
Specification
A Sheet Specifications
| 1. | Coil Type | Pre-painted coil,Galvanized steel,Aluminum |
| 2. | Width | 1200mm |
| 3. | Thickness range | 0.3-0.8mm |
| 4. | Yield stress(mm) | Q235 |
| 5. | Effective width | 1000mm/836mm |
B Machine Specifications
| 1. |
Power requirement
|
Type | 380v/3ph/50hz | |
| Main Motor power | 4.0kw | |||
| Cutter power | 4.0kw | |||
| 2. | Forming speed(m/min) | 8-15 | Not include the time of cutting | |
| 3. | Forming stations | 16 | Depend on actual design | |
| 4. | Thickness of structure | 16mm | ||
| 5. | Forming shaft diameter(mm) | 70 | ||
| 6. | Chains | 1 inch | ||
| 7. | Sleeve | galvanized pipe with color coating | ||
| 8. | Type of cutting | Roll formed and length-set cutting | ||
| 9. | Control system | PLC Panasonic Inverter Schneider | ||
| 10. | Install dimension(depend on the final design) | 7.8m×1.35m×1.2m | Without panel length | |
| 11. | Total weight (Approx) | 7.0T | Depend on final design | |
| 12. | Screen | Text screen /touch screen | ||

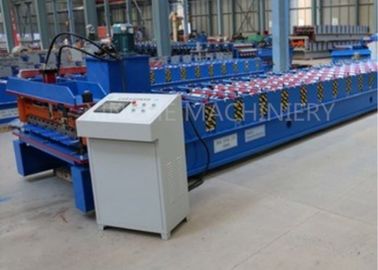

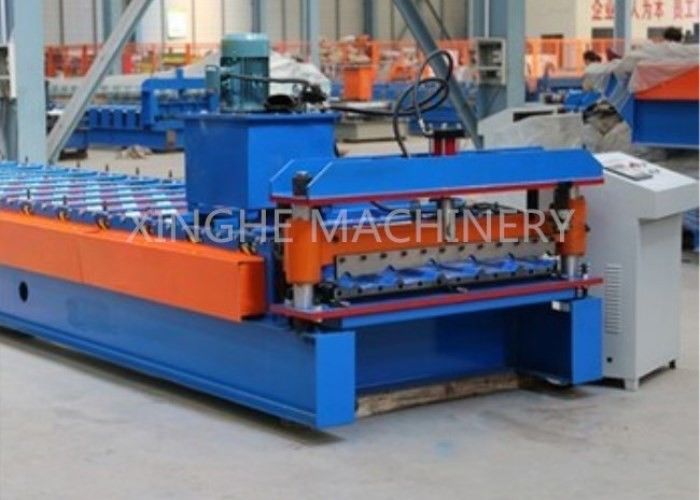

Machine shows
FAQ
1. You are the manuafacturer or trading company ?
A: We are the professional manufacturer , and we have more than 20 years professional experiece in the field of roll forming machine.
2. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan
for the machine.
3. How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation of the machine.
4.What policy of your garentee?
A: Within the One-YEARS period, we could supply you the replacement parts free of charge
for any damaged parts caused by quality problems after two years,you need to buy by factory cost.
