Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 7.5+5.5kw |
| Voltage: | 380V 60HZ Or At Your Requirement | Dimension: | 8900*1300*1500mm |
| Machine Weight: | 8.0Tons | Warrenty: | 12 Months Warrenty And Long-life After-sale Service |
| After-sales Service: | Engineers Available To Service Machinery | Middle Plate Thickness: | 16mm |
| Control System:: | PLC(imported Brand) | Roller Material:: | 45#steel Chrome Plated |
| Shaft Material:: | 5mm Chrome Coated | PLC Automatic Zinc Roofing Roll Forming Machine/Corrugated Roof Sheet Making Machine/ Roof Panel For: | 75mm |
| Cutting Blade Material: | Cr 12 High Grade Steel | ||
| High Light: | double deck roll forming machine,roofing sheet making machine |
||
Appearance size: 8900mm*1550mm*1510mm
Width range: 1220mm
Thickness range: 0.25-1.2mm
Inner diameter range: 500mm
Speed of product: 20-25 m/min
2. Processes and components

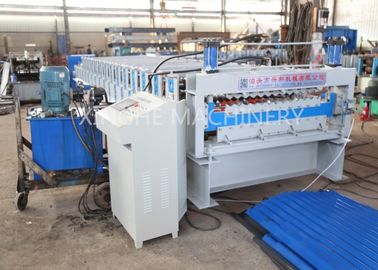

Processes: Man-made uncoiler—Roll forming machine—PLC system-Hydraulic system-Blade—Receiving table
Flow chart:
3. Components of line:
| No. | Name | Unit | Qty |
| 1 | Man-made uncoiler | set | 1 |
| 2 | Main machine for roll forming | set | 1 |
| 3 | Control system | set | 1 |
| 4 | Hydraulic system | set | 1 |
| 5 | Blade | set | 1 |
| 6 | Receiving table | set | 1 |
4. Function and structure:
Man-made uncoiler
Application and technical parameter :
Inner diameter:500mm
Outer diameter:1100mm
Width:1000 mm
Loading weight:less 5 T

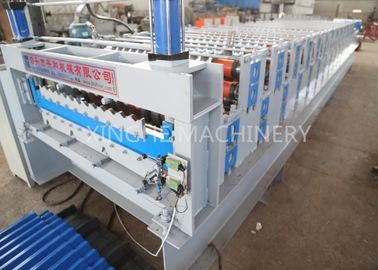

5. Main machine for roll forming
Application and technical parameter:
Pass:16/18 passes
Shaft diameter:75mm
Roller material:45 steel(Cr coating)
Total power:7.5+5.5KW
6. Control system:
Function and operation:Control the starting ,operation and stopping of the complete line, including distribution section, operation table, counting instrument. Use PLC to control, set and adjust the length. Both man-made and auto operations: on the man-made condition, each equipment can operated by switch; on the auto condition, only circulating stop and rapid stop switch.
Install chart:
7. Hydraulic system
Function: apply power for cutting machine
8.Blade
Function and structure: cutting the forming sheet
Application and technical parameter:Blade material: Cr12 and Harding treatment
Max thickness: 0.3-1.2mm
