Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Type: | Tile Forming Machine |
|---|---|---|---|
| Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 5.5+4.0kw |
| Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | 12 Months |
| High Light: | roofing sheet roll forming machine,metal roof roll forming machine |
||

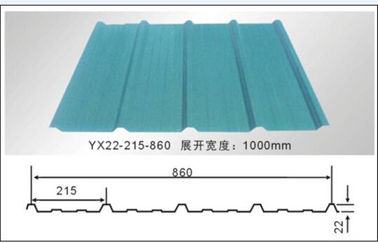

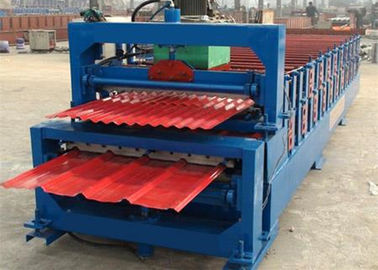

860/850 Corrugated & IBR Roof Sheet Double Layer Roll Forming Machine/Corrugated Long Span Aluminium Roofing Sheet
Advantage:
1. Variable frequency speed control
2. Latest type,little noise
3. High precision in forming and cutting
4. High efficiency
5. Widely use
Note: we can design and produce machine according to your special size requirement.
Technical parameters:
| Dimensions | 6700*1200*1500mm |
| Large frame | 300H steel |
| Rolling wheel | Forging 45# steel |
| Diameter of roller | 75mm with conditioning |
| Roller station | 9+11rows |
| motor power | 5.5KW |
| hydraulic power | 4.0KW |
| Rolling speed | 10-12m/min |
| Rolling thickness | 0.2-0.8mm |
| Feeding width | 1000mm or as customer's reuqirment |
| effective width | 860mm/850mm or as customer's reuqirment |
| Machine weight | About 4.5-5.0 tons |
| Kind of drive | Driving with 1.3 inch chain |
| wall thickness main molding machine | 14mm |
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a Double layer Panel Roll Forming Machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name
components
Q: What size decoiler can you supply us with?
A: From 5tons decoiler to a 25tons motorised hydraulic decoiler
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: Terms mutually agreed on and we do accept Letter of Credit by pre arrangement.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: My current machine rollers need to be replaced. Would you be able to assist me?
A: Yes. Send us your profile and specifications then we will manufacture the rollers for you
Q: What kind of controls do you use on your machines?
A: AMS, Delta, Schneider, Siemens, and Mitsubishi
Q: What is your delivery time?
A: Depending on the type of machine, duration of 25 days to 50 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
