Home ProductsRoll Shutter Door Forming Machine

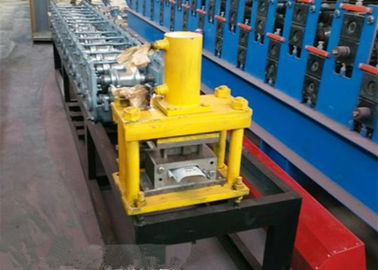

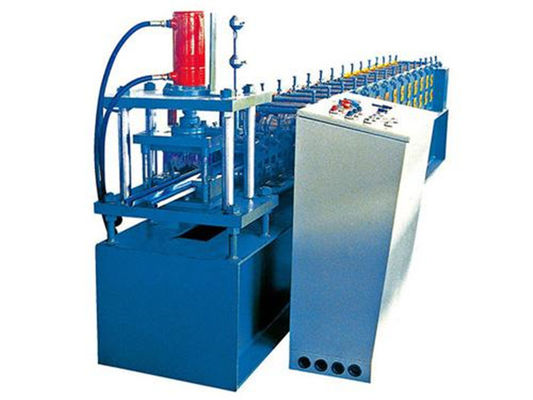

5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed

Certification
Good quality Automatic Roll Forming Machines for sales
Good quality Automatic Roll Forming Machines for sales
I'm Online Chat Now

5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed

China 5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed supplier
5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed supplier 5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed supplier

Large Image :  5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed

Product Details:

Place of Origin: Botou,Hebei Province
Certification: BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Naked and fixed into container
Delivery Time: 10 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 SETS / MONTH
Detailed Product Description
Condition: New Use: Shutter Door
Sheet Type: PPGI / Galvanized Sheet Voltage: 380V, 3 Phase, 50Hz
Power: 3kw+3kw Control: PLC Computer Control
High Light:

rolling shutter strip making machine

,

roller shutter door roll forming machine

Roller Shutter Door Sheet Roll Forming Machine / Roll Panel Cold Roll Forming Machine For Steel Machinary For Steel



Work flow:

Manual uncoiler--punching-- roll forming machine-- PLC control box-- hydraulic cutting-- output table

Article No. Item Name Specification
1 Feeding width 1300mm coil sheet
  Effective width 89mm
2 Thickness of panel 0.5mm-1.2mm coil sheet
3 Roller station 12 stations
4 Shaft Diameter 50mm
5 Productivity 8-15m/min
6 Rollers' material 45# steel forge
7 Shaft material 45# steel
8 Weight 2.5 ton
9 length 5.5 m
10 Voltage 380V 50Hz 3phases
11 Control PLC
12 Decoiler 1.5Tons
13 Motor 5.5kw
14 Driving way Chain transmission
15 Chain size 1 inch
16 Cutting system Hydraulic cutter



Before ordering:

We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .

We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

We can help you to find the real manufacturer of steel coil manufacturer. Say bye to Trade company. So you can order the material coil with lowest price.



During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will show you my blogger account for you to learn knowledge of roll forming machine if you would like

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion



After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you andyou will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine.We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.)



FAQ

1. Q: Are you a manufacturer?

A:Yes, we are manufacture with four branch factories.

2. Q: How should I do if I would like to order my machine

A: Send me your design drawing if you have.

Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.

3. Q: What details of the machine you should get from me.

A: I will confirm all details with you, such as the voltage in your city.

4. Q: I am new in this field. How could i understand the machine very well

A: Why not contact me: 0086+ 13754536227. I promise you that you will be professional after you get from me. It is true thing.

5. Q: I receive a lot of quotations, they are big range, How could i choose?

A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.

6. Q: Can you give me one suggestion for ordering the machine.

A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

7. Q: I have not whatsapp and skype, how could I contact with you

A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you. It is free.

8. Q: What do you think what is the most important for roll forming machine

A: Drawing ! Drawing ! Drawing

9. Q: Can you use other brand of spare parts for me if i want.

A: No problem if you want to pay the money.

 5.5 M Length Roll Shutter Door Forming Machine With 8 - 15m / Min Working Speed
