Condition: | New | Type: | Tile Forming Machine |
---|---|---|---|
Tile Type: | Colored Steel / PPGI / Galvanized Steel Coil | Power: | 3.0+3.0kw |
Voltage: | 380V 60HZ Or At Your Requirement | After-sale: | 12 Months |
High Light: | metal roof forming machine,corrugated sheet roll forming machine |

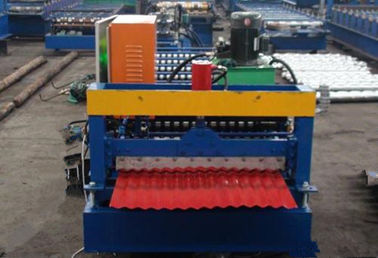

850 Zinc Corrugated Roof Panel Cold Roll Forming Machine roll former Manufacture Roll Forming Machine Used For Corrugate
Specification
Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table. |
Control System | PLC Delta Inverter |
Main Frame | 250mm H-Beam |
Main Power | 3.0 kw |
Pump Power | 3.0 kw |
Power Supply | 380V, 3-Phase,50Hz |
Forming Speed | 8-12m/min |
Roll Station | 11 stands |
Roller Diameter | 70mm |
Hydraulic Pressure | 10-12MPa |

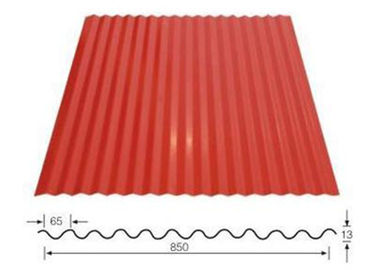

Forming Size | 850mm |
Feeding Thickness | 0.3-0.8mm |
Feeding Width | 1000mm |
Backboard Thickness | 14mm |
Cutter Standard | Cr12 |
Roller Standard | Cr12 |
Cr-Plating Size | 0.05mm |
Overall Size | 4600×1300×1500mm |
Total Weight | 1.5T |
Advantages of the Machine:
1.The design of the machine is convenient to adjust, for it owns reasonable structure, compact shape, high precision and high efficiency.
2.The manufacturing process of the complete machine is in strict accordance with the mechanical standards, tracking and controlling the manufacture of each part.
3.Professional team for technical research and development, providing users with automatic plate processing equipment of high quality and efficiency.
4.The entire line is controlled with PLC, with touch screen of display and operation and high automation.
FAQ:
1.How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2:How to visit our company: Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you. Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3 : If you want to get more pictures or videos of the machine,please contact me now!
