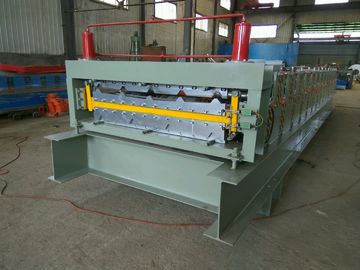

Dipped Galvanized Iron Wall Panel Roll Forming Machine 380V 60HZ 10-12MPa Hydraulic Pressure

: Large Image : Dipped Galvanized Iron Wall Panel Roll Forming Machine 380V 60HZ 10-12MPa Hydraulic Pressure

Product Details:

Place of Origin:	Botou,Hebei Province
Certification:	BV,SGS, CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiation
Packaging Details:	Naked and fixed into container
Delivery Time:	20 Working days
Payment Terms:	L/C, T/T
Supply Ability:	30 SETS / MONTH

Contact Now

Detailed Product Description

Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored Steel / PPGI / Galvanized Steel Coil	Power:	3.0+3.0kw
Voltage:	380V 60HZ Or At Your Requirement	After-sale:	12 Months
High Light:	metal roof forming machine , metal sheet forming machine

Technical parameters:

1	Name of commodity & specification	roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-0.8mm
12	Feeding Width	1000mm
13	Effective width	900mm
14	Productivity	8-12m/min
15	Roll Station	11
16	Roller Diameter	80mm
17	Roller material	45# steel
18	Cutter material	Cr12 , quenched
19	Cr-Plating Size	0.05mm
20	Overall Size	6000×1500×1400mm
21	Total Weight	3.0T
22	Components	Manual Uncoiler-------------------1 set
		Guiding Platform------------------1 set
		Coil Strip Leveler------------------1 set
		Main Machine of Roll Forming------1 set
		Electric-Motor---------------------1 set
		Cutting Device--------------------1 set
		Hydraulic Station------------------1 set
		PLC Control-----------------------1 set
		Supporter Table-------------------1 set
23	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

24	Package	nude in the container
25	Minimum order quantity	1 set
26	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

27	Delivery time	20 working days later after receiving the deposit
All technical parameters can be changed according to user's need.

package and Warranty:
- 1.This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 2.All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
